Brand: TB
Model: 按照客户要求定做
Min. Order: 1000m2

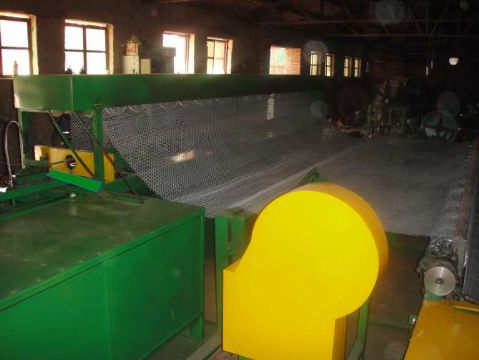

Full automatic machine
chain link fence machine
diamond wire mesh machine
Anping County TIANBEI Metal and wire mesh factory produces a series of full automatic chain link fence machine, We developed the new generation products independence,and won the national patent, a series of innovative technology to enable the machine more perfect, more efficient, more practical and more feasible.

The structure of it is more reasonable and to operate more convenient maintenance, adjustment, replacement of mold is quicker and more convenient, and realize mechanized produce, effectively improve the production , and market competitiveness. reducing costs it is the ideal choice for Chain Link Fence Company.

The machine uses a single wire input single-mode shaping and a series of assistive technologies to ensure complete operation. No harsh demands on raw materials (ordinary wire can be used), correction of intensity about crimped bar at any time under the hard and soft wire adjustment will not affect other parts .entire process meet the requirements of wire put, and ensure surface flat of the mesh;

Advantages:

1, single-wire single-mode design concepts, that the adjustment of crimped bar be more relevance, which can be produced with different style wire.

2, The width of net can reach 6 meters, which is general Chain Link Fence Machine can not reach ,it will be easy to operate and it is reasonable price.

3,to close edge design, a multi-function machine process is more advanced, net edge can be bent may also be curved also it could be bent and curved within the same period,it can meet maximum production needs , it meets request of different nets,thus reducing the cost.

4, mesh collected, it can be curlyed,or shrinked .according as customer requirements

5, this machine adopts micro-electric control and be adjustment by pressing, Humanize design makes the operation becomes simple and convenient, no need for specific technical staff, anyone could operate directly on the machine

6 ,Production:60~90㎡/h, wire diameter 1~4.5mm, mesh range 25~200mm.

7.Power: one 2.2kw , one 1.5kw , one 0.75kw, one 0.55kw ,and two 0.12kw motors
