Brand: 复合
Model: FH-9201
Min. Order: 10
spiral wound gasket
sealing gasket
Graphite spiral wound

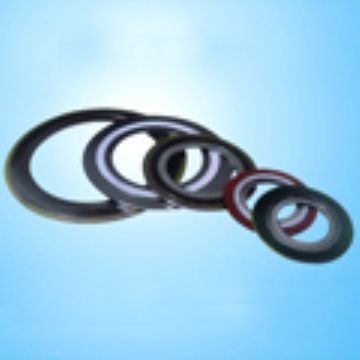

Spiral wound gasket (basic type)
Item: (basic type)
Description: Structure:Spiral wound gasket (basic type) is made by superposing, winding and welding V-type or W-type stainless steel tape and non-metallic filing. It is usually wound by stainless steel, 304,304L,316,316L,321,Ta Mon400, Inconel, asbestos (graphite, PTFE, mica, ceramic) tape used for special-purposed equipments.
Specification:
Equipment: It is used as static sealing material for pipeline, valve, pump, pressure vessel, condenser, tower, manhole and hand hole??s flange connection parts;

Industry: It can be used in petrifaction, machinery, electric power, metallurgy, shipbuilding, medicine, atomic energy, space navigation and so on.

Medium: It is suitable for high-temperature, high-pressure steam, oil, gas, solvent, hot oil and so on.

Specification??


Model Structure Application Material of steel tape
Filling Material of inner and outer rings
Size
mm
Thickness
mm

Name Code V-type W-type
6000 Basic type Tongue and groove 304(L) 316(L),321, Ti, Ni,
Mon400
Inconel, Hastelloy B,C Zr, 702,705 Asbestos
Graphite
PTFE
Mica
Ceramic ASB
FG
PTFE
MICA
CER Carbon steel
304??L??,321
316??L??, Ti, Ni,
Mon400
Inconel, Hastelloy B,C Zr, 702,705 ??16-3000 3.2
4.5 4.8
5.5
7.5
6000 IR With inner ring Male and female face
6000 OR With outer ring Raised face
6000 IOR With inner and outer rings
6000 H For heat exchanger Heat exchanger
