Brand: Mercury-tech
Model: CDM10
Min. Order: 1 PCS

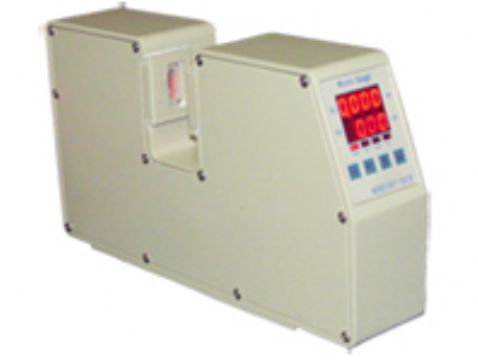

Laser gauge
measuring
meter
I：Summary
The CDM05 o diameter measuring and control installment is uses the Optical Technology, the high speed data gathering

technology and the microprocessor technology carries on the non-contact online survey the high accuracy observation and

control installment, mainly applies in each kind of electricity silk, the line, the optical fiber production line online

survey and the control.
Performance index:
Survey scope:0-5mm
Survey window: 6mm
Survey differentiation: 0.001mm
Repetition: 0.005mm
Survey Precision: 0.01mm
Survey way:CCD imaging
Work way: Continuously
Sampling speed: 1500/seconds, measurable quantity fast vibration object
demonstration speed: 3 - 0.75/second may choose.
Photosource: Red high efficiency light emitter diode (POWER-LED)
Working voltage: 176-265VAC 50--60Hz
Operating temperature: －10～40℃
Consumes the electricity: <85％RH
ALARM output:The relay often opens the contact, the contact capacity 220VAC,1A
communication connection: RS485, conforms to the MODBUS communication agreement.The communication baudrate

4800,9600,19200,38400 may elect, the station number 0-254 may elect, the station number is 0 time automatic transmissions.
Consumes the electricity: <10W
Ecternal dimensions: 310mm ×60mm×160mm
Weight: 3.2kg.
