Product Introduce

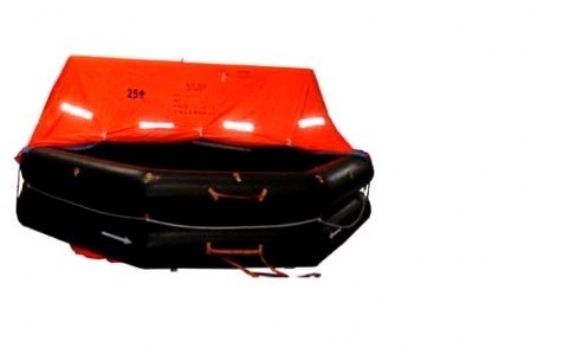

KHA type throw-over board inflatable liferafts are in accordance with 1996 Amendment to the International Convention for the Safety of Life at Sea, 1974, MSC.81 (70) , MSC.218(82), MSC.226(82) and ISO 15738-2002. This product has been approved by CCS, ZY, EC (GL), ABS, LR, and KR. It can be used in the ships engaged on international voyages.
Type KHA-6 KHA-8 KHA-10 KHA-12 KHA-15 KHA-16 KHA-20 KHA-25 KHA-30
Physical form regular
octagon regular
octagon regular
octagon regular
octagon regular
octagon regular
octagon rectangular
octagon rectangular
octagon rectangular
octagon
Capacity 6 8 10 12 15 16 20 25 30
Length (mm) , ±1000 2170 2460 2730 2990 3300 3350 4390 4770 5576
Width (mm), ±1000 2170 2460 2730 2990 3300 3350 3040 3370 3275
Height (mm), ±50 1250 1300 1400 1400 1500 1500 1500 1500 1600
Pack Dia (mm) 545 545 615 615 670 670 690 730 730
Length (mm) 1045 1045 1095 1095 1135 1135 1285 1440 1440
Weight, kg ≤ 78 90 107 122 137 142 170 185 198
