Brand: HMFB
Model: FB
Min. Order: 1000sets

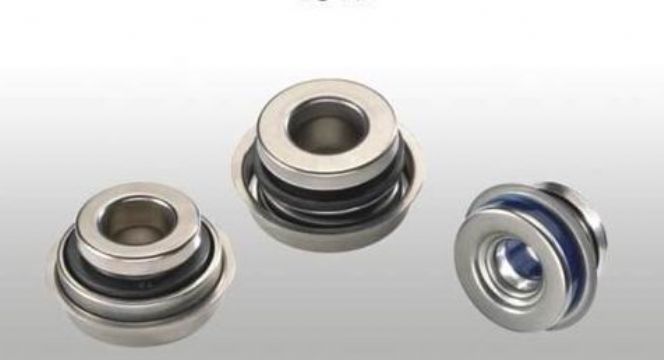

automotive pump seal
auto water pump seal
auto cooling pump seal
OPERATING LIMITS
Temperature: -30℃～+200℃
Pressure: ≤0.6MPa
Speed: ≤15m/s

●Rotary Ring(Ceramic/SiC/TC)
●Stationary Ring(Plastic Carbon/Carbon/SiC)
●Secondary Seal(NBR/EPDM/HNBR)
●Spring & Other parts(SUS304/SUS316)

Model d1 d2 d3 d5 d7 L1 L4
HMFB-12S 12 28.55 32.0 18.5 25/26 17.5 8.0
HMFB-12M 12 30.00 35.0 18.5 25/26 17.5 8.0
HMFB-12L 12 33.40 38.0 18.5 25/26 17.5 6.7
HMFB-13 13 30.00 35.0 18.5 25/26 18.0 8.0
HMFB-15 15 36.45 41.5 22.5 30.5 20.5 8.5
HMFB-16 16 36.45 41.5 22.5 30.5 20.5 8.5
HMFB-15B 16 36.45 41.5 22.5 28.0 20.0 8.5
HMFB-16T 16 36.45 41.5 19.3 31.5 20.5 9.0
HMFB-16L 16 38.10 43.5 22.5 30.5 20.5 8.8
HMFB-16LD 16 38.10 43.5 22.5 28.5 20.5 8.8
HMFB-20 20 38/40 43.8 26.5 37.0 22.0 9.5
HMFB-20T 20 40.00 43.8 28.0 37.0 22.0 9.5
