Applications:

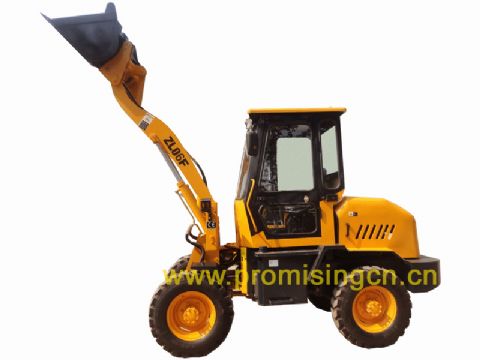

0.8T CE Wheel loader ZL08F is widely used in construction works, public works, urban and rural parks, highway and transportation, station and wharf, and irrigation and water conservancy, as well as various coal pits, limekiln, coal yard, sand and stone quarry, cement mill, etc. It is especially applicable in narrow sites to shovel and load or move earth, sand and stone, coal cinder, lime, fertilizer, trash and other bulk materials. This 0.8 Ton Mini wheel loader can be used together with various trucks, tractors farm vehicles and construction machineries (sand mixer, pug mill), etc.
Features:
Enclosed cab with comfortable seat, heater, radio, fan, fire extinguisher, joystick, optional hydraulic quick hitch, multiple optional loader attachments, top beacon
1. Using 8.25-16-14PR ultra-wide tires to increase the stability of the whole machine;
2. Running system adopts mechanical drive, and the power transmission mode adopts belt transmission ;
3. Power system adopts CHANGCHAI L28 single-cylinder engine to make the machine energy saving and environmentally friendly with high working efficiency;
4. 4-wheel drive and fully hydraulic steering make this small wheel loader light and flexible;
5. The gear shift of this mini front loader has 2 forward and 1 reverse shifts with high and low speed;
6. This compact wheel loader can be equipped with optional hydraulic quick hitch (quick coupler, quick attach, quick change), and this quick hitch enables this 0.8T mini front loader to switch easily and quickly from one loader implement to another loader implement, such as hay grapple, grass grab, straw grapple, log grab, timber grapple, lumber fork, pallet fork, bale grapple, bale clamps, four-in-one bucket, multi-purpose bucket, straight snow blade, angle snow plow, diagonal snow plough V-shaped snow blade, snow bucket, V snow plow, folding snow plough, snow removal bucket, snow blower, sand spreading bucket, drum grab, barrel grapple, bucket broom, pick-up broom, street sweeper, angle broom, diagonal broom, and hydraulic flail mower, etc.
Main Technical Parameters:
1 .Rated Load: 800 kg
2. Total Weight: 2400 kg
3. Rated Bucket Capacity: 0.3 CBM
4. Max. Tractive Force: 28 KN
5. Max. Breakout Force: ≥ 21 KN
6. Max. Gradeability: 38°
7. Max. Dumping Height: 2680 mm
8. Max. Dumping Reach: 900 mm
9. Raising Time: ≤ 4.0 s
10. Total Cycle Time: ≤ 9.0 s
11. Overall Dimensions (L x W x H): 4800*1640*2550 mm
12. Min. Turning Radius: 3000 mm
13. Engine Model: CHANGCHAI L28
14. Engine Type: Single-cylinder, Horizontal, Water-cooled Evaporative, Four-stroke Diesel Engine
15. Engine Rated Power: 20 kW
16. Engine Rated Speed: 2200 rpm
17. Engine Min. Fuel Consumption Ratio: ≤ 244.8 g/kW•h
18. Transmission Mode: Mechanical Shift
19. Gear Shift: 2 Forward, 1 Reverse, High & Low Speed
20. Max. Speed: 25 km/h
21. Model of Drive Axle: 50 Drive Axle
22. Wheel Tread: 1330 mm
23. Wheel Base: 2130 mm
24. Drive Mode: 4-wheel Drive
25. Hydraulic System Working Pressure: 16 Mpa
26. Fuel Tank Capacity: 50 L
27. Service Brake: Foot Pedal Drum Brake
28. Tire Type Specification: 8.25-16-14PR
29. Front Tire Pressure: 0.40 Mpa
30. Rear Tire Pressure: 0.35 Mpa
We have various models of compact wheel loaders that can meet your different capacity needs. Any colors are available upon request.
All specifications and design characteristics are subject to change without prior notice.
