Brand: SBECER/SBEC
Model: SW-2000
Min. Order: 1pc
needle detector

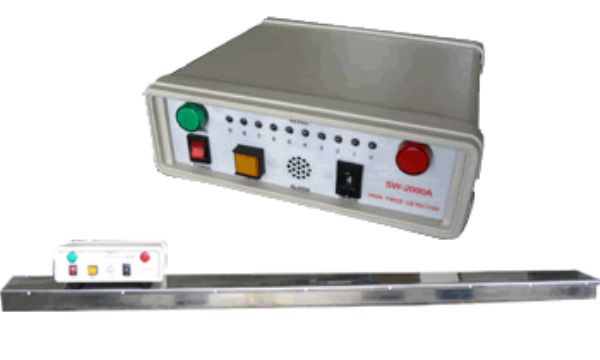

Needle Detector
metal detector
SW-2000

【FEATURES】
1.Stainless steel shell.
2.Sensor made from high quality magnetic material.
3.Hi-stable design can be installed on Fabric inspection machine.
4.Touch-button integrated control panel.
5.10 LED indicate Sensor Lever.
6.SMD technology.

【PURPOSE】
◆ Designed for bed sheet,cloth and down-filled coat use.

【SPECIFICATIONS】
▲ Model： SW-2000
▲ Detection method： Magnetic induction
▲ Detection sensitivity： Max 110mm height by steel needle(¢0.6*L33)
▲ Detection adjustment： 8steps
▲ Detection Width： 2020*100mm
▲ Alarm method： Buzzer、Lamp
▲ Power source： AC85-265V 45-65HZ
▲ Rated output： Appr25W
▲ Dimension： Sensor：2200mm(L)*100mm(W)*45mm(H)
Control：280mm(L)*265mm(W)*105mm(H)
▲ Weight： Sensor：33Kg Control case：2.65Kg

▲ The specification is under standard test condition. The sensitivity depends on the
working condition. We have no responsibility that metal chips come out after detecting
under non-standard condition
