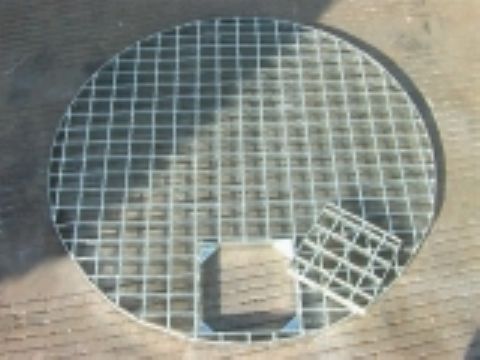

Galvanized Trench Grating

Galvanized Trench Grating

Galvanized Trench Grating

Detailed Selling Lead Description
Brand: shuangyi
Min. Order: 1mt
drain cover
floor drain grating
gully grating
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

2) Bearing Bar Pitch (center to center):
12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,

America standard is available

4) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel

5) Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing

6) Steel grating standards:
A) China: YB/T4001.1-2007
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.
