Brand: SBKJ

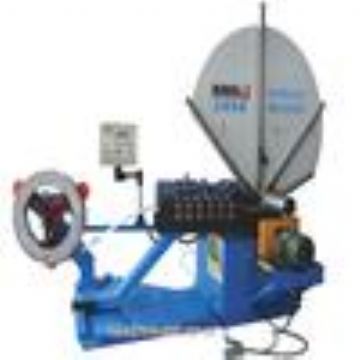

spiral tube former
spiral duct machine
spiral tubeformer
Main Technology Date
Tube Diameter ￠100-￠1500mm
Tube Length 120-8000mm
Thickness 0.4-2.0mm（Galvanized steel）
0.4-1.2mm（Stainless steel）
Strip Width 137-140mm
Strip speed 1-30m/min
Lock seam Outside tube,on the inside on request
Controlling System PLC automatic control
Main motor power 11KW
Cutting motor power 5.5KW
Electric 380V/50Hz
(According to customer’s request)
Working pressure 0.5-0.7KMP
Dimensions(L*W*H) 3500x2200x2850
Weight About 2800kg
Material Galvanized steel, Stainless steel, Aluminum etc
Thickness and Diameter 1.5mm ≥￠200mm
2mm ≥￠450mm
