expanded PTFE joint sealant
PTFE gasket tape
seal gasket
Service Limits
ph range: 0-14
Temperature Limits: -260~ + 260 ℃(-500/+500°F)
Pressure Limit: 20Mpa (or 2900 psi; or 200kgf/cm2)

Physical Properties

Material: 100% PTFE, soft and excellent elasticity.
Density: 0.7~0.8g./cm3 (43~49.5lbs./cu. ft.3)
Elongation: 20%
Matrix Tensile Strength: 30Mpa (4260 psi)
Creep Relaxation (ASTM F38): 51%
Sealablity (ASTM F 37A): 0.1 ml/hr.

Description

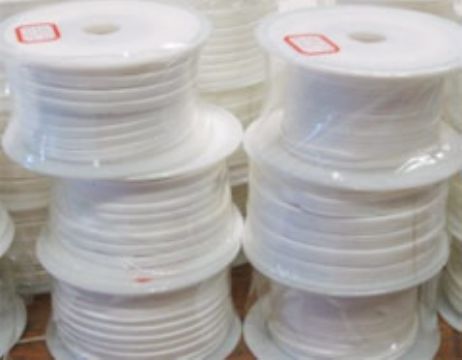

Expanded PTFE joint tape is a multi-purpose gasket tape manufactured from 100% expanded PTFE fluorocarbon material, supplied as a continuous low density tape with a self-adhesive backing strip. It is soft and spongy, permitting it to conform easily to all surface irregularities and to compress to a thin ribbon under pressure.

Application
Expanded PTFE joint tape is recommended as a gasket tape in steel, glass-lined, PVC and fiberglass pipe flanges, fume ducts, concrete lids, heat exchangers, fiber glass reinforced plastic vessels, pump housing flanges, steam vessel flanges, manhole and manhole covers, ceramic joints, ventilation ducts, hydraulic and pneumatic systems, water supply systems and turbine cases.

Chemical Resistance
Because Expanded PTFE joint tape is manufactured from 100% PTFE, it is an inert material which can be used in many applications against corrosive environments, except molten alkali metals and elemental fluorine. 24B will not contaminate media and can be used in food and drug equipment applications.
