SMD LED
SMD5050
LED Strip
Features:
Total 6 pin with Single and RGB color

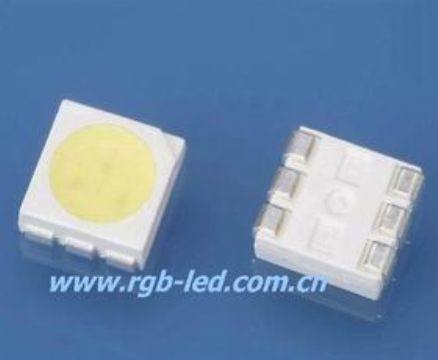

1. Size:5.0x5.0mm SMD LED, 1.5mm Thickness
2. Wavelength and mcd
A: 6 pin with RGB Color
Red: 620-630nm, 350-450mcd if 20mA
Green: 515-535nm, 550-700mcd If 20mA
Blue: 460-475nm, 250-400mcd IF 20mA
B: 6 Pin with Single color
Red: 620-630nm, 1200-1800mcd, if 60mA
Green: 515-535nm, 2500-3500mcd, if 60mA
Blue: 460-475nm, 2500-3500mcd, if 60mA
Yellow: 585-595nm, 1000-1400mcd, if 60mA
Pink Color: 2000-3000mcd, if 60mA
White color: 2500-3500mcd, if 60mA
3. Viewing Angle : 120 degree
4. Ideal For Backlight, Indiacator, digital camera, light ribbon and etc.
5. Package: 1000 pcs/Reel
