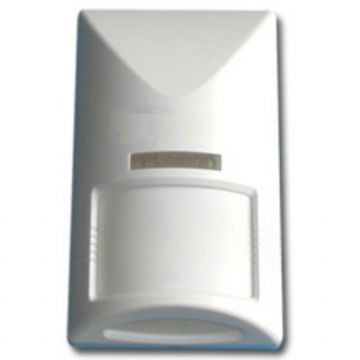

Model: PIR-264MW
Min. Order: 500SETS
detector
safety
alarm
MICROWAVE SENSITIVITY ADJUSTABLE
2 DETECTION WINDOWS
AUTO TEMPERATURE COMPENSATION
MICROWAVE FREQUENCY：10.525GHZ
MOUNTING HEIGHT：1.8~2.5m
DETECTION RANGE：12m×12m
TAMPER SWITCH：NC, 100 mA/30VDC
ALARMING OUTPUT：NC, 100 mA/30VDC
POWER：9~16 VDC
CURRENT：STANDBY: 20mA, ALARMING: 25mA
WORKING TEMP：-10℃~50℃
WORKING HUMIDITY: 0-95%
EMI REJECTION：>30V/M
RFI REJECTION：>6500LUX
SIZE： 112L×65W×42H (mm)
