Brand: VIPEAK
Model: YGM
Price: CNY 1000 / 12000
Min. Order: 1 12000
Micropowder grinder
Raymond Pulverize
roll mill
HGM Series of Three-rings and YGM Medium-speed Micro-powder Grinder is widely used in making fine powder or ultra-fine powder, and the raw materials should be non-inflammable and non-explosive under the Moh's hardness less than 6 grade such as limestone, calcite, dolomite, kaolin, bentonite, talc, illite, pyrophillite, barite, meerschaum, fluorite, potash ore, etc. The lifetime of spare parts is relied on the hardness of raw materials, and is lowered once the Moh's hardness is up to 4-6 grades.

Working Principle of HGM series Three-rings and Medium-Speed Micro-powder Grinder:
The material in the Silo will fall down into the Feeding tube evenly through the Vibrating Feeder, and then fall onto the upper scattering plate, after that will scatter on the gap between the roller and ring. The material into the inner wall of the rollers will be reground, and then fall down onto the lower scattering plate. And the fine powder conforms to the standard will be discharged into the Dispersive Twin-pipe Cyclone Separator, and then be discharged. And the massiveness will enter the grinding wall to be reground. The air current with the dust will enter into the lower part of the Pulse Bag Dust Catcher, and then be discharged through the Rotational Discharging Device after filtering dust.
Model: YGM65-YGM190,HGM7826-YGM9531
Roller(Pcs):(YGM)3-7/(HGM)15-27;
Capacity(kg/h):YGM0.4-35/HGM350-6000;
Dimension( L× W × H )( m ): 10×3×5.5, 11.9×2.7×5.8, 15.5×4.5×8.6.

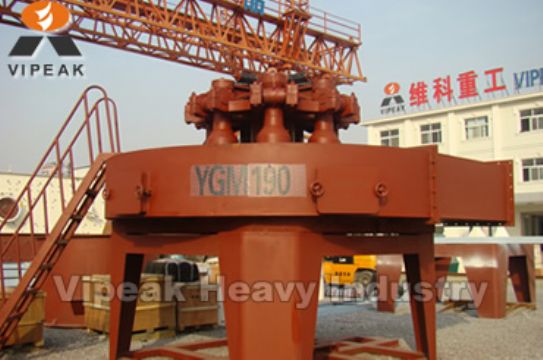

YGM190 Micro-powder Grinder
Technical Parameter
Number of Roller (PCS): 7
Diameter *height of the Roller (mm): 460×280
Diameter *Height of the Ring (mm ): 1900×280
Rotational Speed of the Mainframe (Rev) 66
Max Feeding Size (mm) 35
Final Product Size (mm) 1.6—0.045,the finest product can reach 0.038
Capacity (T/H) 8-35
Overall Dimension (M) : 11470×6940×9580
if you have any question,plz kindly contact me,I will reply to you asap.
