Brand: BY
Model: YD-II WH-2002系列
Min. Order: 1

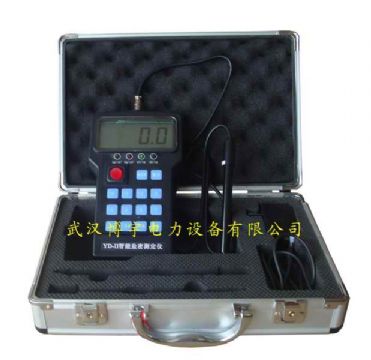

Salt concentration tester
Salt concentration detector
Salt Mi Yi
Model: YD-Ⅱ WH-2002 Series

Main use: used to measure the components of insulator type ESDD

Main features: automatic calibration and temperature compensation; automatic identification conductivity electrode; automatically ESDD, wide measurement range.

Technical parameters: Use: This instrument is a measurement of power system dirty specialized equipment capable of measuring conductivity, temperature and ESDD.

Main features:

● automatic calibration and temperature compensation

● Automatic Identification conductivity electrode

● automatic feed spaces and convert units of measure

● Large measuring range

Technical parameters:

● Range

Electrode constant of a conductivity 0.1μs/cm ~ 20ms/cm

Electrode constant of 10 conductivity 2ms/cm ~ 200ms/cm

Measuring range temperature 0 ℃ ~ 100 ℃

● Measurement Error

Conductivity of 1% (1) temperature ± 0.1 ℃

ESDD 1% (1)

● Overall dimension (mm): 205 × 120 × 35

● Weight: 0.6kg
