Brand: WINNER
Model: YA
Price: USD 8000 / set
Min. Order: 1 set set

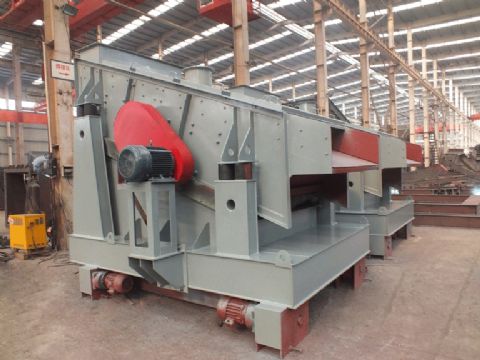

circular vibrating screen
vibrating screen
mining vibrating screen
Applications of WYA series circular vibrating screen for mining:
1. Metallurgical beneficiation grading operations.
2. Coal preparation of dry materials grading operations.
3. Building materials of dry materials grading operations.
4. Power industry of dry materials grading operations.

Overview of WYA series circular vibrating screen for mining:
1.YA circular vibrating screen trajectory is round, the vibrating screen using an ordinary motor to drive the exciter, so that the screen body along the direction of exciting force for periodic reciprocating vibration, material on the screen surface for continuous circular motion, so as to achieve the purpose of screening.
2.YA circular vibrating screen is composed of vibration source, sieve body, sieve mesh, damping device and bottom bracket. Screen machine side plate made of high quality steel, side panels and beams, exciter base with high strength bolts or ring groove rivet connection, sturdy and durable.
3. Adopt eccentric shaft plus eccentric block exciter, high-performance gear transmission system, low stress damping spring, Super heavy duty large clearance bearing, thin oil lubrication and other advanced technology, has the advantages of high sieve frame structure strength and reasonable mechanical structure.
4.Exciter is installed on the screen box, and by the motor through v-belt drive, generate centrifugal force, forced sieve box vibrating.

Features of WYA series circular vibrating screen for mining:
1.Screen box vibration is strong, reducing the phenomenon of material blocking the sieve hole, so that the shaker has a higher screening efficiency and productivity.
2. Simple structure, easy to replace sieve mesh.
3.Screening per ton of material consumed by less energy, in line with energy-saving requirements.
4.Strong exciting force, low noise, large capacity, is the company's environmental protection products.
