Brand: WINNER
Model: YK
Price: USD 7500 / set
Min. Order: 1 set set

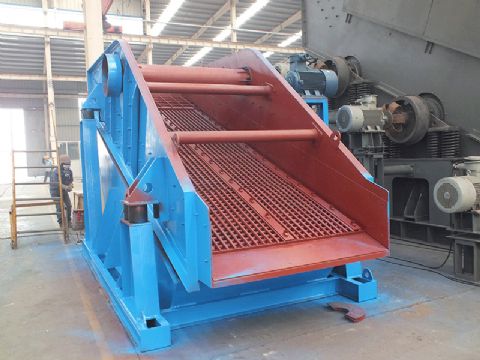

circular vibrating screen
vibrating screen
quarry vibrating screen
Applications:
1. Metallurgical beneficiation grading operations.
2. Coal preparation of dry materials grading operations.
3. Building materials of dry materials grading operations.
4. Power industry of dry materials grading operations.

Overview:
1.Using eccentric block exciter, not only to excite the exciter force increases, and the excitation force can be randomized regulation.
2.Using tire coupling, flexible connection, smooth operation.
3.Screen beams and screen boxes with high-strength bolts, simple structure, easy maintenance.
4.By small amplitude, high frequency, large oblique structure, so that the screening machine with high efficiency, maximum processing, long life, low power consumption, low noise.
5.YK circular vibrating screen use vibrator motor as the excitation source, easy to operation and maintenance.

Features:
1.Exciter with block eccentric form, not only to excite the exciter force increases, but also can regulate the exciting force randomly, which is convenient for modularization design and use.
2.YK circular vibrating screen structure tends to simplify, help to improve the level of manufacturing equipment and assembly accuracy.
3.The use of cross shaft universal joint or flexible coupling such as rubber coupling, smooth operation.
4.YK circular vibrating screen with higher efficiency, greater capacity, longer service life and machine life.
5.Equipment maintenance is simple and convenient, the machine operating efficiency improved significantly.
6.YK circular vibrating screen with advanced technical parameters.
7.YK circular vibrating screen with spring steel woven sieve mesh or punching sieve plate, long life, is not easily blocked.
8.YK circular vibrating screen with rubber vibration isolation spring, long life, low noise and stable resonance zone.
9.The most advanced ring groove rivets riveting, large clearance bearing and thin oil lubrication, sturdy and durable.
