Woven Wire Cloth, Reverse Dutch Weave

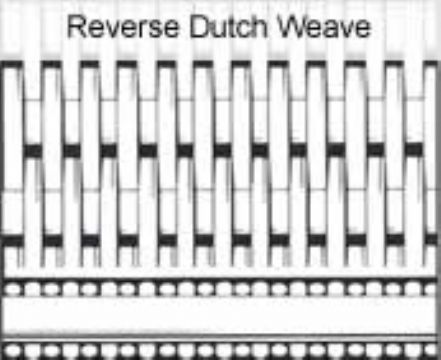

Mallas Wire Cloth of reverse Dutch weave achieves high flow rates thanks to its high levels of porosity. The reversed Dutch construction is comparable with a Dutch weave but is suitable for very high mechanical loads due to the more equal material section in both directions of the wires.


More
Applications of Reverse Woven Wire Cloth: Filter candles, vacuum filters and spring filters.

Materials: Stainless steel woven wire cloth are available primarily to DIN 1.4301 / AISI 304 and DIN 1.4401 /AISI 316 are available on request.

Mesh/Wire Diameter:
152mesh x 24mesh per inch x 0.3mm wire diameter x 0.4mm wire diameter
260mesh x 40mesh per inch x 0.16mm wire diameter x 0.22 wire diameter
132mesh x 14mesh per inch

Widths can be 1020mm (40"), 1220mm (48"). Standard roll length is 30.5m (100 ft).
