Brand: Qiangren
Model: Cu60-150
Price: USD 15 / kg
Min. Order: 10 kg
filter mesh
air liquid filter mesh
brass mesh

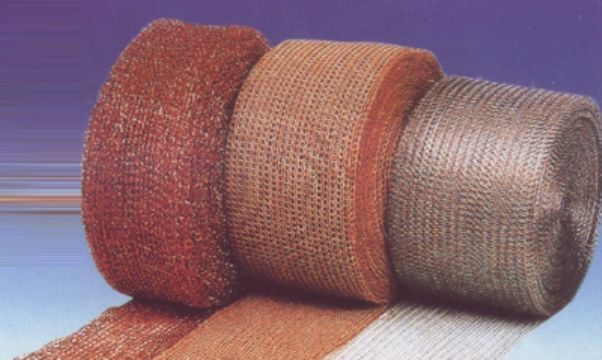

Gas-liquid Filter Screen is a mesh work weaved in a special way. It mostly used as main component of the wire-mesh demister and is a popular product for other separation engineering, as well as automobile industry.
The applied standard of gas-liquid filter screen is the standard of Shanghai enterprise. The standard prescribes the three types of gas-liquid filter screen, namely, standard type, high efficiency type and great penetration type.
Material:1Cr18Ni9,Ti Cr20Ni80 ,Cr20Ni50, Monel, Nickel ,Titanium, Brass, Copper, SUS304 ,SUS304L, SUS316, SUS316L, SUS317, SUS321, SUS310S, SUS304M
Products available: in roll
Specification:
Type Specification Specification of fine wire(MM) Material Area weight(KG/M2)
Standard type 40-100 0.1X0.4 1Cr18Ni9 1/0.5
60-180 0.1X0.4 1Cr18Ni9 1/0.5
140-400 0.1X0.4 1Cr18Ni9 1/0.5
40-100 0.27 Galvanized wire 1/0.7
40-100 0.1X0.4 Copper wire 1/0.7
High-efficient type 70-100 0.1X0.3 Stainless steel wire 1/0.6
80-100 0.1X0.3 Stainless steel wire 1/0.6
90-150 0.1X0.3 Stainless steel wire 1/0.6
200-400 0.1X0.3 Stainless steel wire 1/0.6
High-pierced 20-160 0.1X0.4 Stainless steel wire 1/0.4
30-150 0.1X0.4 Stainless steel wire 1/0.4
70-400 0.1X0.4 Stainless steel wire 1/0.4
Packing: Each roll packed by a 4 mil thick PVC bag, then put in a paper carton. When exporting, the paper cartons will be put on wooden pallets or in wooden cases. (Special packing ways can be arranged upon request)
