Brand: YA
Model: YA-FC100
Min. Order: 10
IR detector
beams IR detector

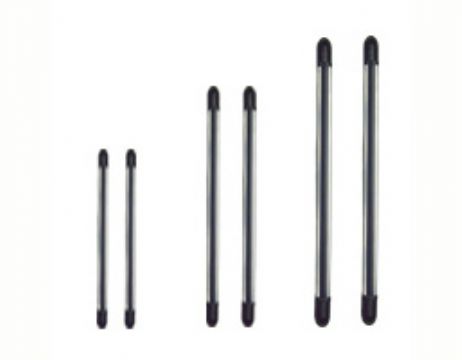

Infrared Fence
1、Wire and wireless available, standard output interface
applicable to diverse situations and compatible to
mainframe of any brands.
2、Top grade aluminum alloy casing and choice components,
good stability and reliability, excellent anti-jamming
3、Rain, fog and snow proof , whole day outdoor use
4、Dismantle and cut prevention, anti-move, two beam
recognition principle can avoid misinform caused by
little animal or flying birds.
5、High sensitivity, Three-grade adjustable warning
distance, AGC circuit design
6、Buzzer tells whether the aiming is ok or not.

Main Technical Index :
1、Working Voltage: DC10 - 18 V
2、Working Current: Light Acceptor ≤35mA,Light Projector
≤75mA, low power consumption.
3、Reaction Velocity: Less than 0.1 second
4、Relay Contact Rating: 30V AC/DC, 0.5Amax
5、Using Temperature: -30℃ -- +50℃
6、Detection Distance: Specifications of indoor 15m~120m or
outdoor 5m~40m
