Brand: KC

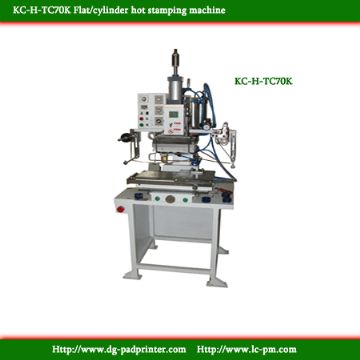

Model: KC-H-TC70K
Min. Order: 1
Hot stamper
hot stamping machine
Foil stamping machine
Specifications︰
1.Size of stamping plate: 125×220 mm;
2.Heater Wattage: 1000W;
3.Stamping height adjustable range =180 mm;
4.Max. stamping diameter: For whole circle: 70mm For partial circle: 220mm;
5.Stamping temperature adjustable range: 0 - 400oC;
6.Stamping foil pulling length: =220 mm;
7.Stroke of stamping plate: 60 mm;
8.Max. stamping pressure: 200 kgf (7bar);
9.Max. stamping speed: 800 pcs/hr;
10.Power: 110/220V, 60/50Hz;
11.Air consumption: 100 litre/min;
12.Dimensions: 640 x 580 x 1060 mm;
13.Weight: 153 Kg;
14. Table stroke： 200*200mm.
Advantages︰
1. Microprocessor control ;
2. Capable of adjusting the stamping pressure, the temperature and the speed;
3. Five-digit counter available;
4. Worktable slight adjustment ensure precision stamping;
5. Automatic foil feeding and collecting;
6. Safe protection device installed;
7. The stamping head height adjustable;
8. Shuttle stable shift ensure stamping cylindrical workpiece;
9. Stamping flat workpiece while uninstall the shuttle;
