Brand: KC
Model: KC-H-TC3025
Min. Order: 1

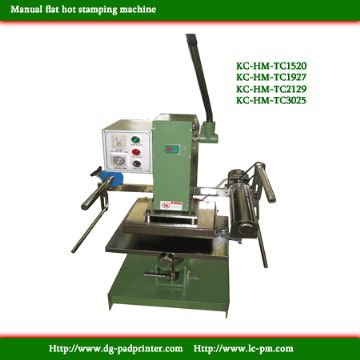

Hot stamper
hot stamping machine
Foil stamping machine
Specifications︰
KC-H-TC1520
1. Hot plate area:150× 200 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000－3000 Kg
4. Up and down distance:45mm
5. Heat wattage:1000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .

KC-H-TC1927
1. Hot plate area:190 × 270 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000－3000 Kg
4. Up and down distance:45mm
5. Heat wattage:1000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .

KC-H-TC2129
1. Hot plate area:210×290 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000－3000 Kg
4. Up and down distance:45mm
5. Heat wattage:1000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .

KC-H-TC3025
1. Hot plate area:300 × 250 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000－3000 Kg
4. Up and down distance:45mm
5. Heat wattage:1000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
Advantages︰
1.Vertical Pressure design ensures big pression;
2.Capable of adjusting the stamping pressure, the temperature and the speed;
3.Worktable slight adjustment ensure precision stamping;
4.The height of the stamping head adjustable ;
5.Automatic foil feeding and collecting.
6.Photecell installed to finsih heat transfer process.
