Brand: KING PIGEON
Model: S275
Price: CNY 10 / Unit
Min. Order: 1 Unit
GSM Modbus
GSM RTU
gsm alarm
Model:S275

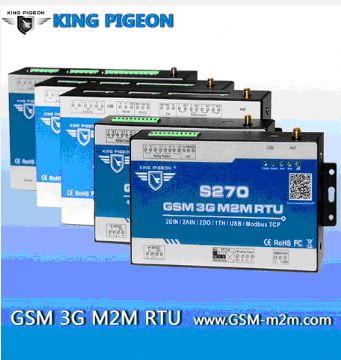

Name: GSM GPRS 3G BTS RTU
GSM GPRS 3G Modbus RTU
GSM GPRS 3G Modbus TCP RTU
GSM GPRS 3G Telemetry
GSM GPRS 3G Data Logger
GSM GPRS 3G Automation RTU
GSM GPRS 3G Data Acquisition Module
GSM 3G IOT M2M Solution

Keyword:
3G RTU, GPRS RTU, 3G RTU Automation, GPRS RTU Automation, 3G M2M, GPRS M2M, 3G telemetry , GPRS Telemetry, wireless telemetry, 3g modbus gateway, 3G ModBus RTU/TCP Gateway, 3G Modbus RTU SMS/Voice Alarm, GSM Modbus RTU SMS Alarm, 3G Remote Control, 3G Alarm. GSM 3G Modbus Slave, GSM 3G Modbus Master. 3G Modbus TCP Master SMS Alarm.
GSM 3G Telecom Base Stations BTS monitoring, GSM 3G Remote BTS Monitoring Solutions, GSM 3G Remote monitoring and control for Power Generators, GSM 3G Remote Generator Monitoring, GSM 3G Cellular Generator Monitor, GSM 3G Environmental Monitoring and Assessment, RJ45 GSM GPRS Modem,rs232,rs485,i/o,Scada RTU Modbus,PLC,TCP IP,wireless telemetry monitor,gsm telemetry,gprs rtu,RTU Controller,GPRS Data Logger


The GPRS 3G BTS RTU is a multi I/O port remote terminal unit, through the RS232/485 port can extend up to 64 additional I/O or connect intelligent meters or PLC. It is special for BTS monitoring, remote data acquisition, telemetrically, BTS access control and other applications. It supports voice communication, SMS, GPRS, 3G and RJ45 LAN IP communications.

The GPRS 3G BTS RTU can be used as remote access control,The authorized users can open the gate or turn on the machine with a free charge call at specified time.

The GPRS 3G BTS RTU supports Modbus RTU, Modbus TCP, TCP/IP protocol, transparent data transmission over GPRS/3G, RS232,RS485, RJ45, performs as Modbus Master or Modbus Slave.

The GPRS 3G BTS RTU can be used as Modbus RTU SMS Alarm, when the data acquisition from via RS232/485 exceeds threshold, it also can send pre-definition SMS to users.

Model 3G Precision DIN AIN PT100 DO Register Record Port
S270 V 12bit 2 2 0 2 X 200 USB
S271 V 12bit 4 4 0 4 X 200
S271-PT V 12bit 4 0 4 4 X 200 USB
S271-PTA V 12bit 4 2 2 4 X 200 USB
S272 V 12bit 8 6 0 4 X SD USB/RS232/RS485
S273 V 12bit 8 6 0 4 64 SD
S274 Reserved
S275 V 16bit 8 6 0 4 64 SD USB/RS232/RS485/RJ45
Notice 1. *C stands for inbuilt module is CDMA2000. *W stands for inbuilt module is WCDMA.
2. All of them support 1 temperature and 1 humidity inputs for environment monitoring.


Mainly Features:
1. ARM® Cortex™-M4 32 Bit RISC Core, 168 MHz inside, RTOS system;
2. Widely Rated voltage range, 9~36VDC, Inbuilt large capacity rechargeable backup battery;
3. 4G SD card for save historical data, USB port for configuration;
4. 6 analog inputs, 16bits, supports 0-5V, 0-20mA, 4-20mA;
5. 6 digital outputs, 5A/30VDC,5A/250VAC;
6. 8 digital inputs, dry contact or level input. One of the input can be used as counter;
7. 1 temperature probe input, 1 humidity transducer input;
8. I/O ports with opto-isolated, RS232/485 with 15KV ESD protection;
9. 2 IP data centers, supports Modbus TCP,TCP/IP protocol over GPRS/3G/RJ45 LAN network;
10. RS232/RS485 can performs Modbus RTU Master, Modbus RTU Slave, supports 01,02,03,05 code, up to 64 registers, the register arise alarm also can send SMS to alert;
11. RS232/485 can be used as data transparent transmission for different intelligent meters or PLC;
12. Automatically resend the data while communication failure, GPRS failure will alert by SMS text;
13. Supports remotely restart the RTU, and configure it by SMS commands remotely;
14. Supports over voltage protection and phase-reversal protection;
15. 10 SMS Alert and auto dial numbers, can program to receive specified alarm message.
16. 10 access control authorized numbers, can open the BTS door or turn on/off machine with a free charge call at the specified time.
