Brand: asicon

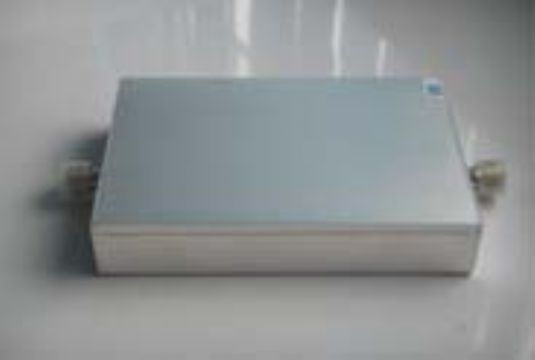

Model: TE-9102A-X/B-X/C-X
Min. Order: 1台/piece
mobile signal booster
mobile signal repeater
GSM signal booster
SPECIFICATION
TE-9102A-X
TE-9102B-X
TE-9102C-X

Frequency range (MHz)
Uplink 890-915

Downlink 935-960

Gain ( dB)
Uplink
Gp≥55
Gp≥60
Gp≥65
Gp≥70
Gp≥45
Gp≥50

Downlink

Export Power(dBm)(Po)
≥23
≥23
≥20

Pass band ripple
≤5dB

Guard band rejection
（BW-60dB）≤42MHz ,
（BW-70dB）≤45MHz

I/O impedance
50Ω/N connector

I/O return loss
≤-10dB

Noise figure
≤8dB

Intermodulation
( 9KHz～1GHz)≤-30dBm

(Po=13dBm)
( 1～12.75GHz)≤-30dBm

Transmission Delay
≤0.5μs

Ambient temperature
-10℃～50℃

Power supply
AC110～220V±10% 45～55Hz

Size
148mm×106mm×33mm

Reliability
To the GB6993-86 standard

Electromagnetic

compatibility
To the ETS300 694-4 standard

Function
a) Power supply work display

b) Export power display

Note
X means frequency range can be designted
