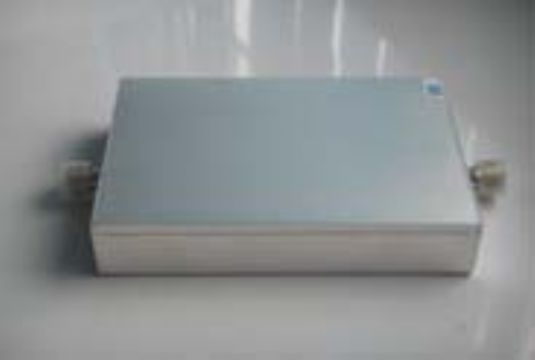

Pcs Signal Booster

Pcs Signal Booster

Pcs Signal Booster

Detailed Selling Lead Description
Brand: asicon
Model: TE-9102A-P/B-P/C-P
Min. Order: 1台/piece
mobile signal repeater
mobile signal repeater
PCS booster
SPECIFICATION
TE-9102A-P
TE-9102B-P
TE-9102C-P

Frequency range (MHz)
Uplink 1850-1910

Downlink 1930-1990

Gain ( dB)
Uplink
Gp≥55
Gp≥60
Gp≥65
Gp≥70
Gp≥45
Gp≥50

Downlink

Export Power(dBm)(Po)
≥20
≥20
≥20

Pass band ripple
≤15dB

Guard band rejection
(BW-60dB)≤120MHz ,
(BW-70dB)≤127MHz

I/O impedance
50Ω/N connector

I/O return loss
≤-8dB

Noise figure
≤8dB

Intermodulation
(9KHz~1GHz)≤-30dBm

(Po=13dBm)
(1~12.75GHz)≤-30dBm

Transmission Delay
≤0.5μs

Ambient temperature
-10℃~50℃

Power supply
AC110~220V±10% 45~55Hz

Size
228mm×106mm×33mm

Reliability
To the GB6993-86 standard

Electromagnetic

compatibility
To the ETS300 694-4 standard

Function
a) Power supply work display

b) Export power display
