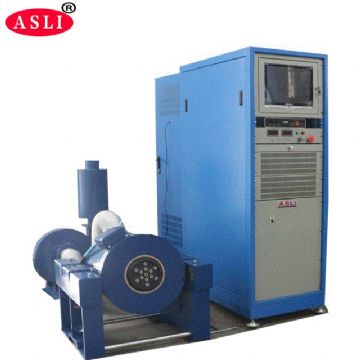

Triaxial Vibration Test Equipment

Triaxial Vibration Test Equipment

Triaxial Vibration Test Equipment

Detailed Selling Lead Description
Brand: ASLI
Model: ES-3
Price: USD 4232 / set
Min. Order: 1 set set
High Frequency Vibration
Vibration Tester
Vibration test equipment
Triaxial vibration test equipment

Vibration Tester/application:
Vibration testing machine can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test.

Technical parameters of the whole system
1. Model: ES-1 ES-2 ES-3...ES-350
2.Rated Sine Force (N): 1000 to 3500000
3.Rated Random Force (N): 1000 to 3500000
4.Frequency Range (HZ): 3 to 3500
5.Rated Acceleration(m/s2): 400 to 1000
6.Rated Velocity(m/s): 1.2 to 1.8
7.Rated displacement (p-p, mm) 25 to 51
8.Max.Loading(kg): 70 to 4500
9.Moving Coil(kg): 2.5 to 300
10.Dimension of moving coil(mm): 150 to 870

High Frequency Vibration/Features:
1.Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2.Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3.Advanced technology move around the system to ensure that the dynamic circle of high reliability.
4.New duct design and enhance the cooling effect.
5.Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
6.Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.

Warranty: one year free warranty for whole set machine,lifelong time maintainance .
After-sale service: feedback within 2 hours after get the call.
Service:OEM service,Design service,Buyer lable service.
