Brand: ASLI
Model: TS-252A
Price: USD 3452 / set
Min. Order: 1 set set
thermal shock testing
environment chamber
Thermal chamber

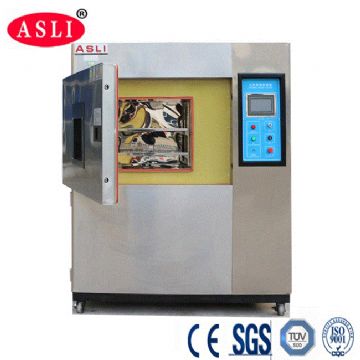

Vertical Thermal Shock Test Chamber

environment chamber/technical parameters:
1.Model:TS-252A
2.Internal Dimension WxHxD(mm):700x600x600
3.External Dimension WxHxD(mm):1700x2100x1750
4.Temperature Range of Testing zone:Type A:-40 celsius degree~+150celsius degree(200celsius degree is Optional) Type
5.Compressor : French “Tecumseh” Brand, Germany Bizer Brand
6.Power:AC380V 3/ 5 lines,50/60HZ
7.Weight (Approx):950

thermal shock testing/application:
Temperature shock tester is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.

Thermal chamber/features:
1.It is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample is in static mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.

Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 2 hours after get the call.
Service:OEM service,Design service,Buyer lable service.
