Brand: A.YITE Electronic
Model: GE-921
Price: CNY 1 / 1
Min. Order: 100 1
Air Flow Switch
Differential Pressure Switch

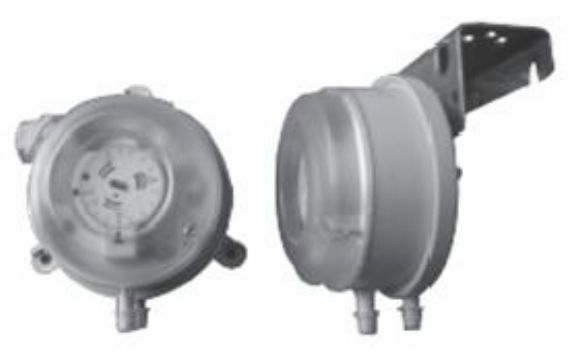

GE921 Adjustable Air Differential Pressure Switch for monitoring overpressure, vacuum and differential pressure of air or other non-combustible, non-aggressive gases. It can be used to sense (differential) pressure and flow of air in ducts and pipes.

Specification:

Max. differential pressure: 5000Pa
Protection Class: IP54
Output: 1.0A (0.4A)/ 250VAC
Working temperature:-20~85 C
Storage temperature: -40~85 C
Min. Actuating pressure: 20Pa(Standard); min.starting interval: 10Pa; range: 20~30Pa
Installation Direction: vertical (standard installation style)
Hose connection: pipe P6.2mm

Type Adjust Range Return Difference Deviation
GE921A 20~200 Pa 10 Pa ± 10%
GE921B 40~100 Pa 20 Pa ± 10%
GE921C 40~200 Pa 20 Pa ± 10%
GE921D 50~500 Pa 20 Pa ± 10%
GE921E 200~1000 Pa 100 Pa ± 10%
GE921F 500~2500 Pa 150 Pa ± 10%
GE921G 1000~5000 Pa 200 Pa ± 10%
