Brand: A.YITE
Model: 321
Price: USD 200 / pcs
Min. Order: 50 pcs

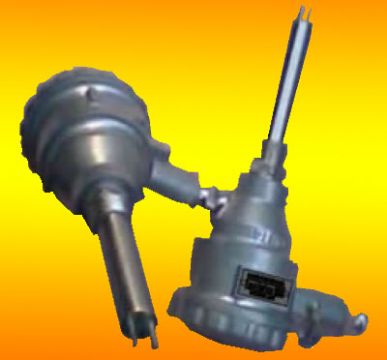

Thermal Flow Switch
Explosion-Proof Flow Switch
The Thermal Flow Switch could be used to measure and monitor the Gas Flow and Liquid Flow, as a stability and sensitive flow switch, Explosion-Proof and Corrosion-Resistant, widely used in Petroleum Chemical Industry.


1. Power Supply: DC24V/100mA
2. Medium Temperature: -40C ~ 80C ( 280C is available)
3. Max Pressure: 5 Mpa (30 Mpa is available)
4. Explosion-Proof Grade: ExdIIBT6
5. Flow Speed: 0.1m/s ~ 30m/s (Gas, Air); 0.01m/s ~ 10m/s (Liquid)
6. Protect Grade: IP65
7. Max Voltage and Current: AC220V/1A; DC24V/2A
8. Wire: RVV4x1.0
9. Connection: G1/2; G3/4; NPT1/2; Flange
