Brand: CrossQ
Model: FM-SMV
Min. Order: 1set
paste filling machine
filling machine
vertical filling machine

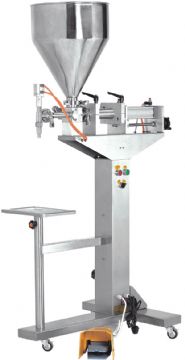

Semi-auto Filling Machine for Viscosity FM-SMV
(Vertical Type )
※FEATURES※
1. This machine is belonged to semi-automatic piston type filling machine for viscosity.
2. Filling quantity and speed can be adjusted..
3. Easy to operate, with high accuracy, simple to maintain and clean.
4. Pneumatic parts: normally adopt Airtac brand, also can choose FESTO,
5. Can set manual or automatic mode.
6. With good structure, easy to removal & installation.
7. Material contact part with SUS316, meet GMP operational standard.
8. With excellent design, with vertical and small structure to save installation space.
9. Be suitable for various products with small weight.
10. Seal parts with silicone rubber which with high anti-abrasion, anti-heat, anti-acid,
anti-corrosion function, with fluorine rubber which is high anti-abrasion, anti-resistance, anti-acid, and anti-corrosive.

※APPLICATION※
● FM-SMV mainly used for viscosity products, such as pesticide, medicine, toothpaste, foods(sesame paste, sweet paste, tomato sauce, peanut butter, chocolate jam, cream), chemical glass adhesive, lubricant and special industrial paste

※SERIES※
Type Filling
Range Filling Accuracy
(%) Filling Speed
(pcs/min) Air supply
(L/min) Power Supply Dimension(mm) Weight
FM-SMV/100 20-100g ±1 10-25 165 AC220V
50HZ 980x550x1450 35 kg
FM-SMV/250 30-250g ±1 10-25 150 1000x550x1550 35 kg
FM-SMV/500 100-500g ±1 10-25 263 1100x550x1600 45 kg
FM-SMV/1000 200-1000g ±1 10-25 367 1300x670x1650 45 kg
FM-SMV/2000 500-2000g ±1 5-15 440 1650x700x1700 75 kg
FM-SMV/5000 1000-5000g ±1 5-15 478 1790x800x1720 85 kg
