Brand: CrossQ
Model: FM-SLV
Min. Order: 1set
liquid filling machine
filling machine
liquid filler

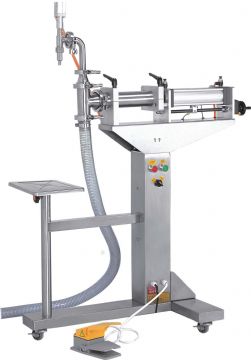

Semi-auto Filling Machine for Liquid FM-SLV
(Vertical Type )
※FEATURES※
1. This machine is belonged to semi-automatic piston type filling machine for liquid.
2. Filling quantity and speed can be adjusted..
3. Easy to operate, with high accuracy, simple to maintain and clean.
4. Pneumatic parts: normally adopt Airtac brand, also can choose FESTO,
5. Can set manual or automatic mode.
6. With good structure, easy to removal & installation.
7. Material contact part with SUS316, meet GMP operational standard.
8. With excellent design, with vertical and small structure to save installation space.
9. Be suitable for various products with small weight.
10. Seal parts with silicone rubber which with high anti-abrasion, anti-heat, anti-acid,
anti-corrosion function, with fluorine rubber which is high anti-abrasion, anti-resistance, anti-acid, and anti-corrosive.

※APPLICATION※
FM-SLV mainly used for filling liquid, such as lotion, care solution liquid, shampoo, wash clean,
lubricants, oil etc.

※SERIES※
Type Filling Range Filling Speed Air supply Power Supply Dimension(mm) Weight
FM-SLV/100 10-100ml 10-40pcs/min 100L/min AC220V 50HZ 980x500x1200 35kg
FM-SLV/250 30-250ml 10-40pcs/min 120L/min AC220V 50HZ 1000x550x1250 38kg
FM-SLV/500 100-500ml 10-30pcs/min 210L/min AC220V 50HZ 1100x550x1300 40kg
FM-SLV/1000 200-1000ml 10-25pcs/min 315L/min AC220V 50HZ 1300x700x1350 45kg
FM-SLV/2000 500-2000ml 5-15pcs/min 405L/min AC220V 50HZ 1650x700x1200 55kg
FM-SLV/5000 1000-5000ml 5-15pcs/min 450L/min AC220V 50HZ 1700x750x1400 78kg
