Brand: CrossQ
Model: FM-SMT
Min. Order: 1set
past filling machine
table paste filling machine
filling machine

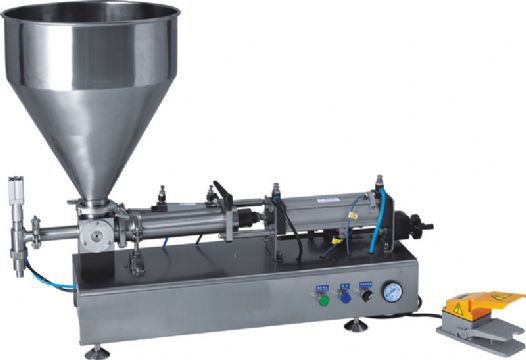

Semi-auto Filling Machine for Viscosity FM-SMT
(Platform Type)
※FEATURES※
1. This machine is belonged to semi-automatic piston type filling machine for viscosity.
2. Filling quantity and speed can be adjusted..
3. Easy to operate, with high accuracy, simple to maintain and clean.
4. Pneumatic parts: normally adopt Airtac brand, also can choose FESTO,
5. Can set manual or automatic mode.
6. With good structure, easy to removal & installation.
7. Material contact part with SUS316, meet GMP operational standard.
8. With excellent design, with vertical and small structure to save installation space.
9. Be suitable for various products with small weight.
10. Seal parts with silicone rubber which with high anti-abrasion, anti-heat, anti-acid,
anti-corrosion function, with fluorine rubber which is high anti-abrasion, anti-resistance, anti-acid, and anti-corrosive.

※APPLICATION※
● FM-SMT mainly used for viscosity products, such as pesticide, medicine, toothpaste, foods(sesame paste, sweet paste, tomato sauce, peanut butter, chocolate jam, cream), chemical glass adhesive, lubricant and special industrial paste


※SERIES※
Type Filling Range Filling Accuracy
(%) Filling Speed
(pcs/min) Air supply
L/min Power
Supply Dimension
(mm) Weight
FM-SMT/100 10-100g ±1 10-35 88
AC220V
50HZ
950x260x650 26kg
FM-SMT /250 30-250g ±1 10-35 113 950x260x730 28kg
FM-SMT /500 100-500g ±1 10-35 230 1030x260x775 31kg
FM-SMT /1000 200-1000g ±1 10-35 335 1250x260x850 33kg
FM-SMT /5000 1000-5000g ±1 5-15 415 1450x260x900 55kg
