Brand: CrossQ
Model: LM-ST510
Min. Order: 1set
labeling machine
automatic labeling machine
dual sides labeling machine

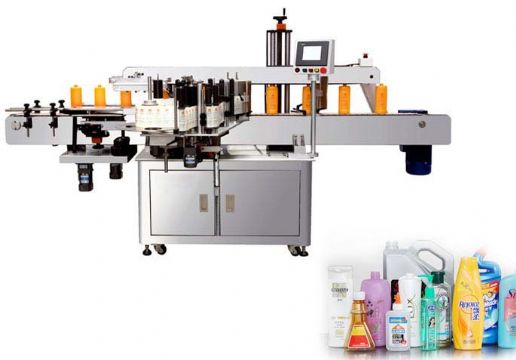

Automatic Dual Sides Labeling Machine LM-ST610
Touch Screen Operational Panel
※FEATURES※
1. With multi-functions, can achieve 4 kinds products labeling, such as square bottles, round bottles, flat bottles and special shaped bottles.
2. Labeling smooth, no wrinkle, no bubbles, with high precision and stability.
3. Use adjustable top pressure and guide devices, mechanic parts with structured combination and ingenious design of tags winding, labeling position can fixed after adjusting, in order that different products change and tags winding get simple and time-saving.
4. According to flat bottles, square bottle, arc bottle, adopts synchronous chain emendation system, it makes sure steadiness and exactness of emendation.
5. synchronous chain emendation system, it makes sure steadiness and exactness of emendation.
6. Can work separately, also can work together with production lines.
7. Main machine material is made of stainless steel and high quality alloy material, overall structure is solid and beautiful.
8. Adopts standard PLC +sensor control system.
9. With error alarming system and production counting function.
10. Optional function and spare parts:
①Hot code printer /coding jet function
②Automatic material feeding function
③Automatic material collection function
④Add labeling device
⑤Other function: based on customer’s actual requirement.
※APPLICATIONS※
● Applicable Tags: stickers, electronic monitoring code, bar code etc.
● Applicable Products: Requiring products on flat surface, arc, circle surface, concave, convex or other surface stick labels.
● Applicable Industries: Widely used for foods, toys, daily chemical, electronic, pharmaceutical, hardware, plastic & rubber, printing industries.
● Applicable Examples: can label the single-side of round bottle, single-side; dual-side and
tri-side of square bottle, single-side and dual-side of flat bottle (e.g. the bottles of shampoo,
emulsion of bath, cooking oil, lubricating oil, detergent and eye-drop etc.)
※SPECIFICATIONS※
● Type: LM-ST610
● Labeling Accuracy：±1mm （not including products, tags error）
● Labeling Speed: 20～280 pcs/min (based on products’ size)
● Applicable products size：
Flat / square bottles,：Width≥20mm, Length≥20mm, 20≤Height≤350mm;
Round /cone bottles/：￠20≤diameter≤￠150mm, 10≤height≤350mm
● Applicable tags size：15≤Width≤200mm, Length 10-200 mm; Inner diameter 76 mm
● Rated Output：4.2KW
● Machine Size：2700×1500×1500mm（L×W×H）;
● Power Supply：220V 50/60HZ;
● Machine Weigh：50Kg
