Brand: CrossQ
Model: FM-P
Min. Order: 1set
filling machine
powder filling machine
powder filler

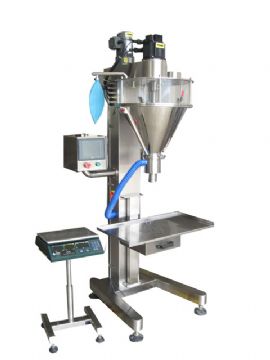

Powder Filling Machine FM-P
Touch Screen Operational Panel

※FEATURES※
1. The whole machine is made of stainless steel material, oil pressure lever. In
particular the application of GMP, food sanitation certification.
2. Because of the unique way of mechanical transmission, so its simple structure, good stability and strong ability to over loading.
3. Servo motor driving screw is characteristics of high-precision orientation, high-speed, great-torque, long-life, setup rotate speed, stable performance.
4. Stirrer’s driven by the Taiwanese motor reducer: low noise, long life, maintenance-free life.
5. Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material
6. Can store 10 kinds products’ operational parameters.
7. The hopper is made of stainless steel and is consist of glass, damp material movement at a glance through the glass, air-sealed to avoid the leak, easy to blow the nitrogen, and the discharge material mouth with the dust collector to protect the workshop environment

※APPLICATIONS※
● FM-P Powder filling machine is designed for the powder, ultra-fine powder and other materials, it can auto-complete finish measuring, filling, blowing nitrogen and others. It can match with variety of bag packing machine for the measurement of powder filling materials. It fits the fluidic or low fluidity materials, such as milk powder, fodder, rice powder, white sugar, monosodium glutamate, solid beverage, dextrose, food additive, dyestuff, and so on.
● Weighing Mode: Vibrating products fill in and weighing


※SERIES※
Type Filling Range Filling Speed Accuracy Power Supply Dimension Weight
FM-P100 0.2-100g 10-100packs/min ≤±1g%
AC380V/3P, 220V/1P, 50HZ~60HZ 630×570×1000mm 120kg
FM-P500 1-500g 20-65pakcs/min ≤±1g% 650×750×1800mm 150kg
FM-P5000 10-5000g 10-50packs/min ≤±1g% 1000×1275×2200mm 260kg
FM-PT50 100-50kg 5-10packs/min ≤±2g% 1000×750×2400mm 330kg
