Brand: CrossQ
Model: FM-G
Min. Order: 1set

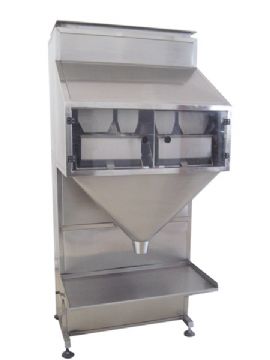

granule filling machinefilling machinegranule fillerGranule Filling Machine FM-G
※FEATURES※
1. Two-independence of the weighing cabinet to weigh: less vulnerable by outside influence, with
separate bags, work fast.
2. Feeder-adjust automatically according the proportion of the material to ensure high-precision
and high fast.
3. Independent single weight sensor: stable performance, high sensitive.
4. Time can be set to memory the current number of the packing, easy to transfer and timely
feedback the rate of qualified products.
5. Time can be set to cooperate with the action, easy to operate.
6. With calibration procedures: equipped with poise and calibration hooks, adjusted at anytime, it’s
very useful the weight drift in long time no using.
7. Weighing cabinet is sealed by glass, equipped with the dust collector, easy to collect the dust
and protect the environment of the workshop.
8. The weighing cabinet use the linked way, it can be disassembled directly and easy to clean.
※APPLICATIONS※
● VP-G granule filling machine can do measuring and filling work. It’ suitable for the fluidic granular materials, such as rice, sugar, monosodium glutamate, solid drink, glucose, chicken essence, washing powder or expanded granular materials.
● Weighing Mode: Vibrating products fill in and weighing
※SERIES※
Type Filling Range Filling Speed Accuracy Power Supply Dimension Weight
FM-G/1000 50-1000g 15-30pcs/min ≤±1g% AC220V 50HZ 630×530×1660mm 150kg
FM-G/5000 200-5000g 8-15pcs/min ≤±2g% 880×860×2010mm 180Kg
