Min. Order: 1

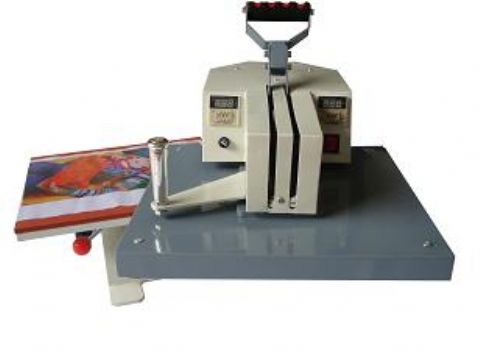

Shaking his head Tang Hua
Specifications: 38 * 38CM, 40 * 50CM (size of special models can be customized)

Features:

1, heating a special line of ultra-sophisticated technology, which can effectively guarantee the balance of humidity for peace;

2, the entire electronic temperature controller, the temperature of plus or minus 2 degrees Celsius, a few significant time control;

3, heating the surface temperature stickers bearing anti-step, Tang Hua effective, easy to clean;

4, the pressure spiral design, can be easily transferred at the required pressure;

5, Diban surface, the installation of high temperature silicone plate so that the transfer products able to achieve perfect results, swing-heating, place of printing of more convenient.

Technical parameters





Voltage;
Voltage
110V, 220V

Power;
power
2000W, 2500W

Temperature range;
Temperature range
0-399 ℃

Time;
Time range
0-999S

Table size;
Work table size
38 * 38CM, 40 * 50CM

Package dimensions;
Casing size
73 * 43 * 39 (CM) 73 * 65 * 51C

Weight;
Avoirdupois
39.5kg 54.5kg




Operational procedures:

Note:整机must have appropriate protection of solid ground.

1, plug in the power, open the power switch, power indicator light was on -

2, thermostats adjust to the required temperature, timer-tune the required time,

3, hold the right-fever handles will be open;

4, will be the next hot clothing and flat panel, Tang Hua on the stack of paper (Please note that the paper is negative Tang Hua), fever Tuohui the original plate, the force will handle downward pressure until the end.

5, when the Hot Stamping instructions to set the time, the warning prompted (buzzer sound), will handle up to in situ, open the hot plate.

To be torn off in the cooling state Tanghua paper, please use the blackboard will be wiped clean once again balanced paper Tang Hua, such as 5-10 seconds before the Tang Hua paper torn away.

Heat in a state paper to be torn off Tang Hua, Hot Stamping finished Tang Hua paper please immediately removed. Hot Stamping success of the need to correct temperature, time and pressure each other to the thickness of clothing and materials and the type of paper Tang Hua Tang Hua could affect the results;

Maintenance guide

1, the pressure: If not enough or too much pressure, and then turn adjust the pressure regulator nut size

2, temperature: When the equipment arrived after the heat-set temperature does not heat, check the wiring for temperature control at the same time to confirm whether the damage thermocouple (0 degrees Celsius temperature for about five minutes at 180 degrees Celsius);

3, Time: set the time did not reach the alarm (buzzer did not ring) or the alarm (buzzer did not stop), please check the box on the tail of the micro-switch from the point of contact is appropriate and, if anomalies Please adjust to Appropriate location;

4, the fulcrum of the adoption of a silk shoots conditioning, strength No longer than 30 kg.

Note: If a quality issue, this time with the company
