Metallic tower packings
Metallic structured packings

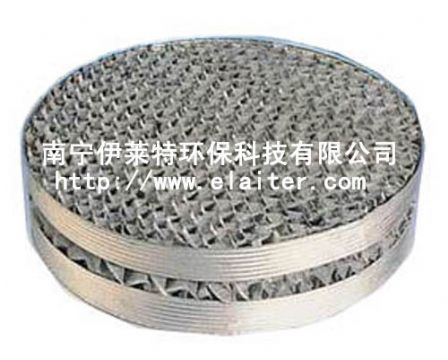

Metallic gill net ripple packing
The metallic gill net ripple packing is suitable for separation domains high chemical industry, fine chemical industry and solvent recovery.
Technical data of metallic gill net ripple packing:
Type Wave crest hight (mm) Theoretical
Plate（1/m） Specific surface area (m2/m3) Pressure drop (Mpa/m) Void rate（%） The biggest F factor [m/s(Kg/m3)0.5] Heaping
weight (kg/m3) Liquid
load (m3/m2.hr)
700Y 4.5 5-7 700 9.3×10-4 85 1.6 240-280 0.2-100
500Y 6.5 3-4 500 2.0×10-4 93 2.1 170-200 0.2-100
250Y 12 2.5-3 250 3.0×10-4 97 2.6 85-100 0.2-100
