Brand: HOll
Model: IEC-526H
Min. Order: 10 PCs
network security appliance
firewall
firewall hardware

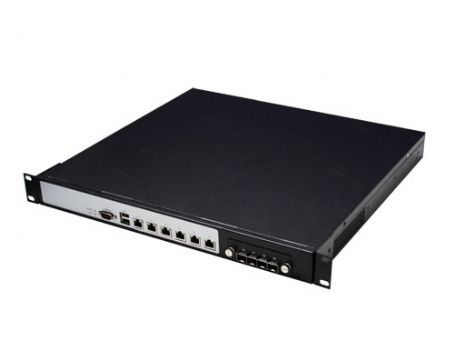

6/4 rj45, 4/2 sfp network security hardware firewall appliance

Network Security Platform 1u hardware case, based on Intel H55 chipset, Intel 3450(Optional ), Up to 10 GbE LAN Ports (4/ 6x RJ-45, 2/ 4xSFP).

Features:
1u firewall hardware case for network security;
CPU Support Intel Core I3/I5/I7, LGA1156;
Chipset Intel H55, Intel 3450(Optional);
BIOS AMI SPI BIOS;
System Memory 4x DDR-III at 800/1066/1333 MHz, NON-ECC
DIMM, Up to 16GB;
Display Chip Intel GMA4500;
Ethernet Chip Intel 82574L; 82580/82599(Optional);
I/O Chip IT8718F;
LAN BYPASS 2x BYPASS Function;
Watchdog Timer 255 Generates a time-out system rese; T
Dimensions(WxHxD) 430x44.5x400 mm.

I/O Interface:
IDE Interface 1x 44 Pin IDE Interface;
SSD 1x CF Slot;
SATA Interface 4x SATA Interfaces;
LAN Onboard 1x 82574L Gigabit Ethernet ports;
USB Ports 2x USB2.0 Ports in Front Panel, 6x Built-in USB2.0 Ports;
Display Ports 1x Built-in VGA;
Keyboard/Mouse 1x Built-in PS/2;
PCI Expansion Slot 2x PCIE8X, 1xPCI expansion slots.

Optional Components
IEC-95N4 4x RJ-45 gigabit lan ports expansion card (with 2x bypass), 2x82580 Dual gigabit ethernet controller chip
IEC-95N6 6x RJ-45 gigabit lan ports expansion card (with 2x bypass)
IEC-95N8 8x RJ-45 gigabit lan ports expansion card (with 2x bypass), 2x82580 Dual gigabit ethernet controller chip
IEC-95F4
4x gigabit SFP ports expansion card(Optional)
IEC-95W2 2x 10G SFP ports expansion card(Optional)
IEC-95S8 8x gigabit SFP ports expansion card, 2x82580 Dual gigabit ethernet controller chip
IEC-95A 8: SASx 8(6G)
Ordering informations of Network Security appliance IEC-516H
Model No. Motherboard Ethernet controller GbE RJ-45 (Ports) LAN BYPASS( Segments) Power supply
IEC-516H-010
IEC-810N6Q Intel82574L 6 2 FSP 250W
IEC-516H-020 IEC-810N6Q Intel82574L 4 1 FSP 250W
IEC-516H-030 IEC-810N6Q Intel82574L 6 N/A FSP 250W
IEC-516H-040
IEC-810N6Q Intel82574L 4 N/A FSP
