Brand: HOll
Model: IEC-516P
Min. Order: 10 pcs
firewall
firewall case
firewall hardware

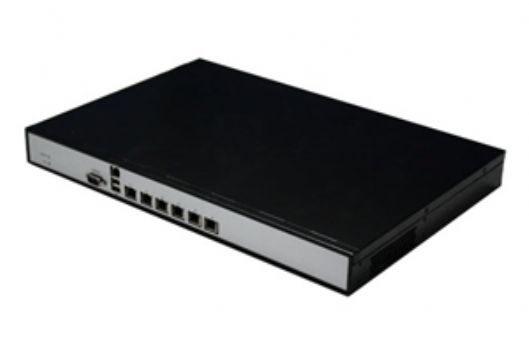

1U firewall hardware case, network security appliance, Intel Atom dual core D525 CPU, 6 x Intel ports, supports bypass function, 100W power supply. For supporting to install systems of IPS, IDS, VPN, UTM, network monitor, network traffic monitor, network security gateway, load balancing and flow control.

Features
Low power Intel Atom dual core D525 processor, 1.8GHz, 1MB L2 cache
Onboard 2 x204pin DDR3 RAM slot, up to 4GB
6 x Intel Gigabit Ethemet controller, supports 2 group BYPASS
1 X PCIE X4 slot, for expanding HOLL gold finger horizontal plug LAN card
1 XRJ-45 COM, supports RS-232 communication from other device to machine
Supports 2 X USB2.0, SATA, CF slot and so on
Construction: Heavy-Duty Steel Chassis
Weight(Gross): 5.5KG
Dimensions(D x W x H): 440x300x44.5 mm

Motherboard
Platform: Intel Pineview-D Platform
CPU: Intel Atom 45nm dual core D525 1.8GHz processor, 1 MB L2 cache
Chipset: Intel ICH8M
BIOS: SPI FLASH BIOS
System Memory: Onboard 2x 204Pin DDR3 SO-DIMM RAM slot, up to 4GB

Storage
Interface: 3 x SATA interface, 1 xIDE interface, 1 xCF slot
Hard disk: Supports 1 x3.5"HDD bay
CF slot: 1 x CF slot, support master/slave setting

Ethernet
Ethernet Interface: 6x10/100/1000Mbps RJ-45 ports
Ethernet chip: 6 x Intel W82583V high performance Gigabit Ethernet chip
BYPASS: Supports 2 group BYPASS Function
Indicator Light: Onboard LAN link, active, speed and BYPASS function LED

External I/O
USB: 2 x USB2.0
COM: 1 x RJ-45 COM
Indicator Light: 1 x power LED, 1 x HDD LED

Internal I/O
Video: 1 x dB-15 VGA port, support hot plug, Maximum resolution supports 2048 x1538
USB: 8 X USB2.0 Pin-header
Keyboard/Mouse: 1 x PS/2 Keyboard and Mouse Pin-header
COM: 1 X RS-232 Pin-header for LCM module
TPM: 1 X TPM connector for TPM module
DIO: 16-bit Digital I/O(8-bit input/8-bit output)
WTD: Software programmable supports1 -255 sec System reset
Expansions: 1 X PCI Slot, 1XPCIEx4 slot

Power Supply
Power consumption: 100W power adapter
AC input Voltage: 90-240V AC input

Environment
Mounting: Supports rack-mounting or desktop-mounting
Operating Tempreture: 0° C to 60° C (Test with CF card or SSD)
Storage Tempreture: -20° C to 75° C
Operating Humidity: 5% to 85% non-condensing@ 40° C
Storage Humidity: 5% to 95% non-condensing
Safety: FCC/VDE(Level A)

Optional LAN card
IEC-95 X4: 4-port Gigabit Ethernet switch card
IEC-95 X4SH: 4-port 10/100 Mbps Ethernet switch card
IEC-95 X8: 8-port Gigabit Ethernet switch card
IEC-95 NF2: 2 XRJ-45 and 2 XSFP Gigabit LAN card

Ordering Information
IEC-516P-010E: IEC-516P system, D525 CPU, 6LAN ports, 2 group bypass, 100wpower adapter
IEC-516P-020E: IEC-516P system, D525 CPU, 6LAN ports, 100W power adapter
IEC-516P-030E: IEC-516P system, D525 CPU, 4LAN ports, 1 group bypass, 100W power adapter
IEC-516P-040E: IEC-516P system, D525 CPU, 4LAN ports, 100W power adapter
IEC-516P-010SE: IEC-516P system, D425 CPU, 6LAN ports, 2 group bypass, 100W power adapter
IEC-516P-020SE: IEC-516P system, D425 CPU, 6LAN ports, 100W power adapter
IEC-516P-030SE: IEC-516P system, D425 CPU, 4LAN ports, 1 group bypass, 100W power adapter
IEC-516P-040SE: IEC-516PM system, D425 CPU, 4LAN ports, 100W power adapter
IEC-516P-050SE: IEC-516P system, D425 CPU, 3LAN ports, 100W power adapter
IEC-516P-060SE: IEC-516P system, D525 CPU, 6LAN ports, 1 group bypass, 100W power adapter
