Brand: JP
Model: PHQ-50
Price: USD 2000 / set
Min. Order: 1 set set
Balance Machine
Dynamic Balance Machine

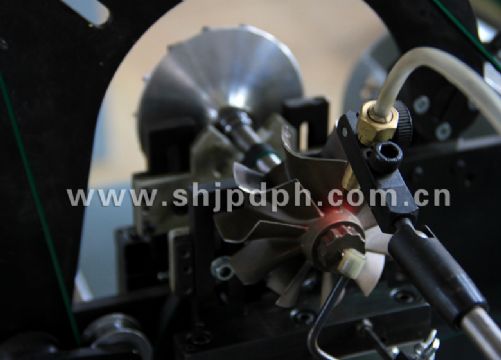

Turbocharger Balance Machine
This balancing machine is widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors, turbocharger,textile machinery, fans,shaft, etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.

Specifications
Parameters

Max Mass of Workpiece (kg)
50

Max Diameter of Workpiece (mm)
700

Distance between Two Support Bearings (mm)
80--700

Journal Diameter Scope of Workpiece (mm)
8~80

Diameter Scope of Driving Belt (mm)
18~200

Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)
650/1000/1300/2000

Motor Power (kw)
0.55/0.75

Min Achievable Residual Unbalance Amount (emar)
0.5g mm/kg
