Brand: KWS

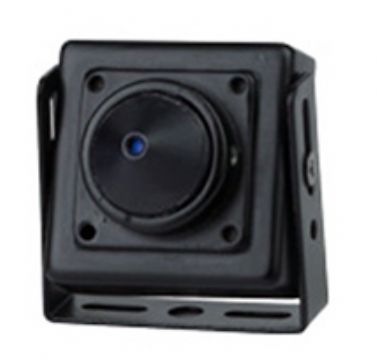

Model: CN-MCC01
CCD, SONY, 1/3, 1/4
micro camera, mini
pinhole, spy hidden
Image Sensor:1/3-inch Sony Color CCD image sensor.
Effective Pixels:NTSC:512(H)X582(V). PAL:512(H)X492(V).
Signal System:NTSC/PAL.
Horizontal Resolution:420TV Line.
Minimum Luminance:1.0Lux/F1.2.
Lens Mount:3.6mm.
Back Light Compensation: Auto.
Auto Electronic Shutter:1/60(1/50) to 1/100,000 sec.
Auto Gain Control:Auto.
White Balance: On/Off Switch.
S/N Ratio: > 50 dB.
Gamma: >0.45.
Operating Temperature: -20oC to 50oC.
Sync. System: Internal.
Video Output: 1 Vp-p/75 Ohms.
Power Source: DC12V,<500mA.
Dimension: 25X25X10 mm.
Weight :300g.
