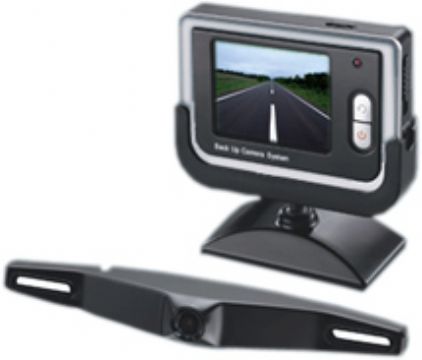

Model: CN-8803
Rear view camera
wireless car camera
wireless real view camera
Specifications:
Camera:
Imaging Sensor: CMOS.
Total Pixels: 720X480(NTSC)/720X576(PAL).
Transmission Frequency: ISM 2,400 - 2,483MHz..
Transmission Power: 2mW/FCC, 10mW/CE.
Minimum illumination: 5Lux.
Modulation Type: FM.
Bandwidth: 18MHz.
Power supply: +12/+24V DC.
Consumption Current(Max.): 90mA.
Dimensions(W X D X H)(mm): 258 X 37 X 41.
Weight(about): 115g.
Operating Temperature: 20℃~+60℃.

Receiver:
LCD Screen Type: 2.5" TFT-LCD.
Transmission Frequency: ISM 2,400 - 2,483MHz.
Effective Pixels: 640 X 480.
Video System: NTSC/PAL.
Color Configuration: RGB delta.
Received Sensitivity: <-85dBm.
Consumption Current(Max.): 200mA.
Unobstructed Effective Range(Min): 50m.
Dimensions(W X D X H)(mm): 104 X 25 X 75.
Weight(about): 102g.
Power supply: +12/+24V DC.
Operating Temperature: -10℃~+50℃.
Operating Humidity(Max.): 85%RH.
Channel Frequency:
CH1=2,414MHz; CH2=2,432MHz; CH3=2,451MHz; CH4=2,469MHz.
Actual transmission range may vary according to the weather, location, interference and building construction.
All the specifications are subject to minor change without prior notice.
