Magstripe Card Reader
Mini400 Portable Reader
agnetic Card Reader Writer Encoder

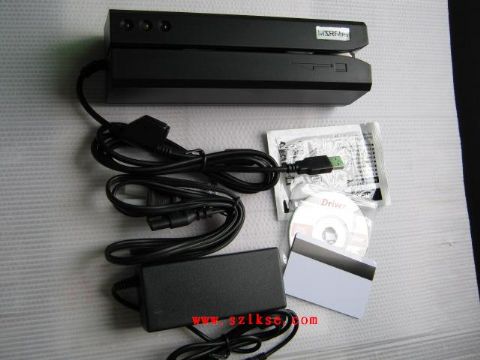

1/2/3 track USB Magnetic Credit Card Reader / Writer MSR605/MSR206/MSR505
1/2/3 track Magnetic Credit Card Reader / Writer INTERCONNECTION
MSR605/MSR206/MSR505 data collecter details
MSR Magnetic Card Reader / Writer introduction
Cable USB
1. VBUS
Pin Assignment 2. D
3. D+

USB 4. GND
MECHANICAL
Body ABS 94V-0 / Metal housing optional
Swipe Manual, single direction
Outline 212Lx64Wx63H mm
Weight 1.4Kg approx.

ENVIRONMENT
Operation -10ºC to 60ºC
10 to 85% humidity, non condensing
Storage -30ºC to 70ºC
10 to 90% humidity, non condensing
PERFORMANCE
Read Circuit Track 1&3 210bpi
Track 2,75 or 210 bpi
Bit per Char 5-7 bit per char.
Media Speed Read, 5-50 ips (read speed 5-40 ips for track 2 at 210bpi)
Media Coercivity Read 300-4000 Oe Mag. Card
Media Thickness Write 300-4000 Oe Mag. Card
Jitter Card Read bit to bit interval <+/-1 5% card
Write bit to bit interval <+/-10%, Sub interval <+/-12% at 30ips
Low amplitude Card Read 60% for both 75& 210bpi
Error Rate Read < 0.5%
Write < 0.8%
Media Swipe Head life 1,000,000 passes for both read & write head

MODEL READ/WRITE TRACK Hi-C Lo-C
Configuration
Available Model MSR605 1&2&3 R/W R/W
More information about1/2/3 track USB Magnetic Credit Card Reader / Writer MSR605/MSR206/MSR505/ MINI123,MINIDX3,MINIDX4,MINI400MSR,Please email to us or click our website. Or you can buy it directly on our company Aliexpress store- http://www.aliexpress.com/fm-store/700424 .

China ShenZhen LIKES Electronic CO.,LTD
Website: http://www.szlkse.com/
Contact Name:Ms.Lee
Email:lisalee81@live.com , info@szlkse.com
MSN:lisalee81@live.com
Skype: lisa.lee8188
Tel:86-0755-86642499
Fax:86-0755-86642499-816
Mobile:0086-15112668922
Address: Buiding 3, second Industrial park,Heping west road,Longhua Town,Bao"an Distrist,Shenzhen,China
Postcode:518067
