Brand: CJDS
Model: SBDRS-1
Price: CNY 1 / m
Min. Order: 10000 m

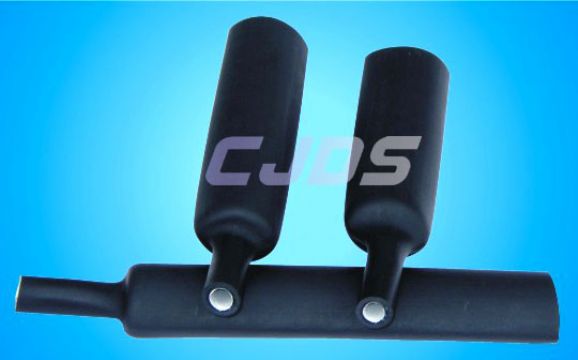

heat-shrinkable
double-wall sleeve
Double-wall heat-shrinkable flame retardant casing (3:1,4:1)

Hot melt adhesive with a layer of semi-flexible heat-shrinkable tube. Outer layer is composed of radiation cross-linked polyolefin, specially designed for the inner layer is the inner wall of the plastic; wall melt when heated and contraction with the outer wall of the pore or gap filling, cooling, double-wall pipe wall thickness uniform and solid. Widely used in electronic equipment wiring waterproof, sealed electric wire fixed branch of the Department, the anti-corrosion protection of metal pipes and to prevent relaxation produced by the polymer chain off the loose and, under water lighting, automotive tubing, wiring harness, such as high-level. Through UL224 certification.

Features
• Shrink ratio: 3:1 4:1
• contraction speed: fast
• commonly used colors: red, orange, yellow, blue, green, white, black (common)

Temperature range
• Continuous use temperature: -55 ℃ ~ 125 ℃
• Minimum initial shrinkage temperature: 80 ℃
• minimum total shrinkage temperature: 120 ℃
技术指标Technical Data

序号 测试项目Property 测试方法Test Method 检测结果Typical Value
1 拉伸强度Tensile Strength ASTM D638 14 N/mm2
2 断裂伸长率Ultimate Elongation ASTM D638 460%
3 热冲击 Heat Shock @ 250º C UL 224 通过passes
4 低温试验 Cold Bend @ -30ºC ASTM D2671 通过passes
5 阻燃性 Flammability UL 224, VW-1 通过passes
6 击穿强度Dielectric Strength ASTM D149 15kV/mm
7 体积电阻率Volume Resistivity ASTM D257 1x1014Ω•cm
8 纵向收缩率Longitudinal Change ASTM D2671 Inside +/-10%
9 吸水率 Water Absorption ASTM D570 <0.5%


产品规格Product dimensions

序号
规格SIZE
收缩前最小内径mm
收缩后最大内径mm
收缩后基材壁厚mm
收缩后胶层壁厚mm

IN
MM

1
1/8
3.18
3.18
1.02
1.02
0.51

2
3/16
4.75
4.75
1.57
1.02
0.51

3
1/4
6.35
6.35
2.03
1.02
0.51

4
3/8
9.53
9.53
3.05
1.40
0.62

5
1/2
12.70
12.70
4.06
1.78
0.76

6
3/4
19.05
19.05
6.35
2.16
0.89

7
1
25.4
25.40
8.13
2.54
1.02

8
1-1/2
38.10
38.10
12.95
2.54
1.02
