Brand: MSR
Model: msr606
Price: CNY 1820 / Unit
Min. Order: 1 Unit
Magnetic Card Readers
Hi-Co
Magnetic Card Writers
Swipe Magnetic Card Hi-Co Reader/Writer
Introduction
Thank you for purchasing the MSR606 Manual Swipe Magnetic Card Reader/Writer. It is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications. In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR606 reader/writer.
The MSR606 is designed to offer a reading and writing solution of high and/or low coercivity cards that will attractively complement an existing system.

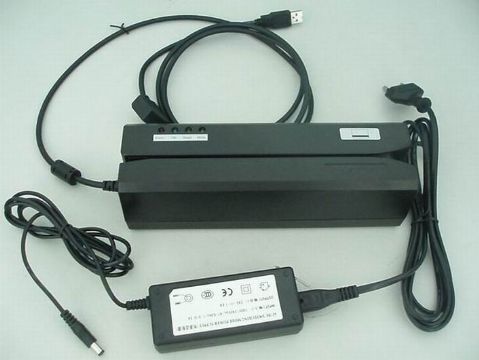

Accessories of MSR606
Make sure all the following accessories are contained in your package:
1. Switch power Supply, AC 110~240V in / DC 24V, 2.2~3A out.
2. Power cord.
3. Signal cable (USB).
4. Utility disk (A/P S/W).
5. Programmer’s manual.
Warranty
One year after purchase of MSR606, any alteration and/or erasure or modification of the MSR606 will void the warranty.
General Description
The MSR606 series is designed to read and/or write high or low coercivity magnetic cards. It can encode and verify up to 3 tracks of data simultaneously. It communicates with a host computer or other terminal using a usb interface.
Technical Specifications
ITEM SPECIFICATION
Standard ISO7811
Electrical
Consumption Current/operating Typical 350mA Max
600mA plus for each writing track
Communication Standard RS232 signal voltage levels. Default, 9600 Baud, None Parity, 8 bits
Power supply External switching Power 24V/2.2A regulated
Interconnection
Cable USB
Pin Assignment
USB 1,power
2.TXD / data transmit
3.RXD / data receive
4. circuit ground
Mechanical
Body ABS 94V-0 / Metal housing optional
Swipe Manual, single direction
Outline 212Lx64Wx63H mm
Weight 1.4Kg approx.
Environment
Operation -10ºC to 60ºC
10 to 85% humidity, non condensing
Storage -30ºC to 70ºC
10 to 90% humidity, non condensing
Performance
Read Circuit Track 1&3 210bpi
Track 2,75 or 210 bpi
Bit per Char 5-7 bit per char.
Media Speed Read, 5-50 ips (read speed 5-40 ips for track 2 at 210bpi)
Write, 5-30
Media Coercivity Read 300-4000 Oe Mag. Card
Write 300-4000 Oe Mag. Card
Media Thickness 0.76-1.2mm
Jitter Card Read bit to bit interval <+/-15% card
Write bit to bit interval <+/-10%,Sub interval<+/-12% at 30ips
Low amplitude Card Read 60% for both 75& 210bpi
Error Rate Read < 0.5%
Write < 0.8%
Media Swipe Head life 1,000,000 passes for both read & write head
Configuration
Available Model Model Read/Write Track Hi-C Lo-C
MSR606 1&2&3 R/W R/W
