Brand: MSR
Model: YT-206
Price: CNY 1680 / set
Min. Order: 1 set
Swipe Magnetic Card Writers
Magnetic Card Readers
MSR

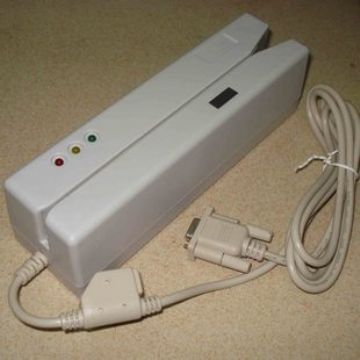

Swipe Magnetic Card Hi-Co Reader/Writer
Introduction

Magnetic Swipe Card Reader/Writer YT206 is designed to offer a card reading/writing solution for ISO 7811/1~6 formats. It reads and writes up to 3 tracks of data, e.g. decoding/encoding and verifying up to 3 tracks of data simultaneously. Also, YT206 Reader/Writer provides a standard RS-232 interface to communicate with host system or other terminal computers. That will attractively complement an existing system.
Features

• Reading/Writing magnetic stripe card complied with ISO 7811/1~6 formats
• Read Low & High Coercive force of magnetic stripe (300~4000Oe)
• Low Coercivity encoding circuitry selectable on screen
• Writing and then verifying data on single, dual, or triple track in one swipe
• Program software for Windows 98/Me/XP
• Programming software for various read/write performance
• Manual Swipe to read or write card with RS-232 output
• Programmable leading bit, raw data, DMV/AAMVA, and user defined format
• 5~35ips operational swipe speed of writing data
• 5~55ips operational swipe speed of reading data
• +24VDC+/-10%, 2.0A Max., external power adapter attached
• Good size with dimensions of 212(L) x 62(W) x 58(H) mm
• CE, FCC, UL, cUL certified • Reading/Writing magnetic stripe card complied with ISO 7811/1~6 formats
• Read/Write High & Low Coercive force of magnetic stripe (300~4000Oe)
• High/Low Coercivity encoding circuitry selectable on screen
• Program software for Windows 98/Me/XP
• Programming software for various read/write performance
• Programmable leading bit, raw data, DMV/AAMVA, and user defined forma
• Manual Swipe to read and/or write card with RS-232 output
• Writing and verifying data on single, dual, or triple track in one swipe
• 5~35ips operational swipe speed of writing data
• 5~55ips operational swipe speed of reading data
• +24VDC+/-10%, 2.0A Max., external power adapter attached
• Good size with dimensions of 212(L) x 62(W) x 58(H) mm
• CE, FCC, UL, cUL certified
Performance

Read card
Track1
Track2
Track3

Bit per density
210 bpi
75/210bpi
210 bpi

Coercive force
Read/write 300-4000 oe Mag.card

Card thickness
0.76-1.2mm

Read speed
STD card
Jitter +/-15%
Amp. 60%
5-55ips
5-50ips
5-50ips

Write speed
5-30ips

Write jitter
Interval < +/- 10%, Sub-interval < +/- 12%

Error rate
Read < 1%
Write < 1.5%

Head life
Min. 600K swipes for both read/write head

Specifications

Electrical

Power requirements
+24VDC +/- 5%

Consumption
Typical 350mA Max. 600mA plus for each writing track

Power supply
External switching power 24V/2.2A

Communication
Standard RS232 signal level

Ripple
50mVp-p or less

Dielectric strength
500 VDC for 1 minute
