Model: QMKB-Ex
Min. Order: 1

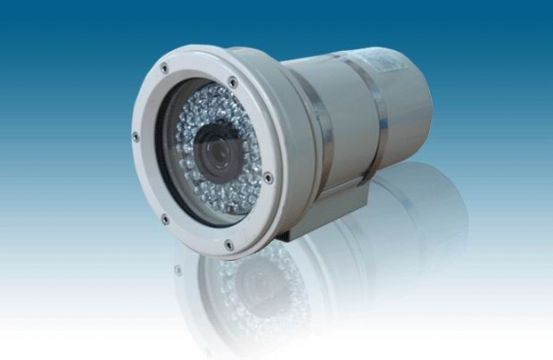

explosion proof IR camera
The product is designed,produced and tested according to the GB3836.1-2000 and GB3836.2-2000 "Explosion proof electric equipment in Explosion gas envionment"


Level of Explosion-proof：ExdⅡCT6

Material：Special Charcoal Steel(stainless steel optional)

Function and characteristic： Visible in 60 meters,the IR lamp auto-turn on when the visible light is short.It can work at night and in the dark environment.The luminous flux is higher than 92%,so it can avoid the smooth completely.Explosion-proof,water-proof and dust-proof.


Applied environment: It is suitable for dangerous explosion gas environment.The explosion gas is class IIA,IIB and IIC and the environment group is in the temperature from T1-T6 in Area No.1,No.2,No.20,No.21 and No.22.Such as mine,steamship,gas station,curative,gas storeroom and so on.

Explosion-proof mark ExdⅡCT6
Protect grade IP66
Image sensor color 1/3"SONY Exview CCD
Resolution 420TVL / 480TVL
Min illumination 0Lux(IR lamp turn on)
IR visible distance 60 meters
Lens 6mm / 8mm / 12mm / 16mm / 25mm optional
IR switch auto-turn on when the illumination lower than 10 Lux
Power supply AC220V
Working current ≤2000mA
Environment temperature -25℃ ~ +70℃
Outer size ￠160mm ×310 mm(length)
Weight ≤8kg
