Model: QMYT-Ex
Min. Order: 1 pcs

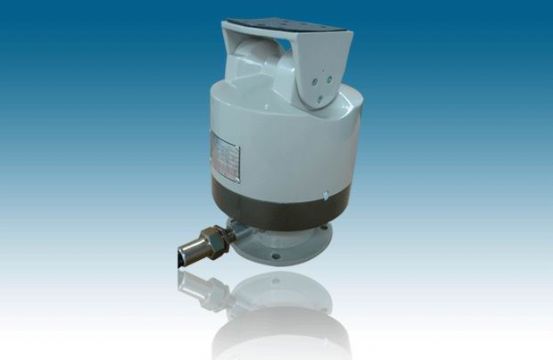

explosion proof pan/tilt
The product is designed,produced and tested according to the GB3836.1-2000 and GB3836.2-2000 "Explosion proof electric equipment in Explosion gas envionment"


Model：QMYT-Ex
Level of Explosion-proof：ExmⅡT6
Function and characteristic：Adopt importing and non-spark electrical machine,improved the capability of the safety.Small yawp,water-proof and dust-proof.Easy installation and maintenance.Auto cruise and preset location,so it is more safety and efficiency to watch multipoint.


Applied environment: It is suitable for dangerous explosion gas environment.The explosion gas is class IIA,IIB and IIC and the environment group is in the temperature from T1-T6 in Area No.1,No.2,No.20,No.21 and No.22.Such as mine,steamship,gas station,curative,gas storeroom and so on.

Explosion-proof mark ExmⅡT6
Max loading ≤16Kg
Turning angle Horizontal 0-355 degree Vertical ±60 degree
Turn speed 6 degree/sec
Auto cruise Auto turning(optional)
Control mode Pan/Tilt or decoder controller
Power supply AC24V
Working current ≤2000mA
Environment temperature -40℃ ~ +60℃
Environment humidity <95%
Outer size Φ190×290mm
Weight ≤8kg
