Brand: SAM
Model: SAM-SCF-273
Min. Order: 1
Auto filter
self-cleaning filter
water filter

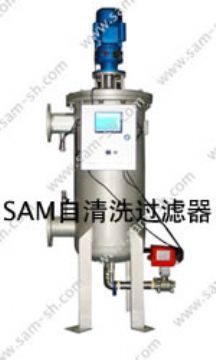

Fully Automatic Self Cleaning Filtration System
ICM Working principle
Construction and working principle: Scraper-cleaning filters is composed of the motor reducer, cylinder, strainer, scraper system, differential pressure controller, PLC controller, electric control boxes, and the sewage valve. raw materials MEDIA through the mouth into filter, from inside to? outward after filter screen space, After filtration of raw materials lower part of a top-down flow of material I. More than gap filter impurities is withholded ?down, Filter components running after a certain time, filter impurities gap was plugged, the differential Pressure to achieve a pre-determined value, PLC monitoring and issued instructions to the signal, Driven by the rotation scraper reducer, automatically remove dirt attachment the filter, Maintain strainer filter function, and maintain the smooth flow filter screen space. At the bottom of the filter impurities increased, as long as at the bottom of the slag discharge valve is opened , impurities will be smooth emissions, allowing the pressure system to maintain normal .the ?scraper of? Self-cleaning scraper filters with a rational layout, curettage angle optimization, under the slowdown electrical machine driven, the scrape? rotation scratch impurities into the filter scraper gap timely, a clean strainer from the trouble, and maintain raw materials Unimpeded smooth. scraper system is composed of tablets ,PTFE scraper and? spring self-cleaning filters, a reasonable choice of spring pressure, minimize the wear on the filter screen.

ICM Design Features
1) Adopt fully automatic Continuous filtration online to meet the operation requirements of automation technology;

2) Using electric drive system: Use reducer driven rotary scraper, automatic removal of the attachment filter impurities to maintaining Strainer Filtering function;
3) PLC control functions: Self-cleaning pressure,Self-clening time,the manual cleaning, Pressure priority, Connecting with the central control room;

4) By the actual certificate,the filtering effect is very good, strainer adopt Imports of stainless steel wire-mesh ,wash clean,not easy to wear;

5) In many areas of alternative traditional bag filters, Blue-filter,cartridge- type filter, Shaker filters, Frame filter, Belt filter ect.

ICM application range
ICM The main application of high viscosity fluid filtration media

1) resins, coatings, paints, inks, adhesives, polymers
2) syrup, edible oil, chocolate, peanut oil, toothpaste, fuel oil, lubricants, catalyst, liquid cooling ect.
