Brand: SAM
Model: SAM-2P
Min. Order: 1
bag filter housing
bag filter
side line

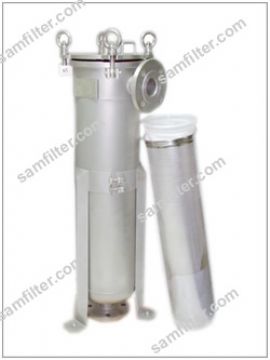

Side-line bag filter housing
SAM Side-line Bag Filter
A SIDE-LINE vessel is a full-featured investment-cast filter vessel. A bead, not sand, blasted finish that makes cleaning easy and a cover that can be easily adapted to different opening directions are among SIDE-LINE’s many value added features. :
For filter bags sizes 01 and 02;
01 Size - 20,000 lt per hour flow for Nominal rated bags;
02 Size - 40,000 lt per hour flow for Nominal rated bags;
Side entry inlet connection;
Available in 304 or 316 stainless steel;
2" ANSI Inlet and Outlet;
Buna NTM seals standard (Viton also available)
Maximum operating pressure of 10 bar (standard model)
Steam jacket (Optional)
