Brand: vipeak
Model: TGM160
Min. Order: 1
trapezium grinder mill
roller mill
grinding mill

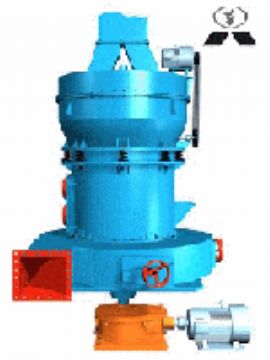

Compared with the traditional Vertical grinding mill, TGM Series SUPER PRESSURE TRAPEZIUM GRINDING MILL has six superiorities:
1, The rollers and rings are designed in inverted trapezium, which reduces the slip velocity of the material, prolongs the time for grinding, increases the grinding efficiency.
2, This machine adopts pressure spring balanced adding pressure, which enables the Force Point increased 40%. Damping can be realized through the resilient joint, which can still avoid resonance.
3, Being equipped with the high density vane of the finer powder collector to increase the powder fineness, under the same rotational speed, the capacity of the final powder can be increased 50%.
4, The high-efficient energy-saving centrifugal induced wind fan is available. The efficiency of the impact vane of air blower in the traditional grinding mill is only 62%, but the energy conservation impeller and the vane induced wind fan is 85%.
5, The patent impeller adjuster: the size of the gap between the tip of the separator vane and the shell can be easily adjusted to get the powder fineness.
6, The unique design of the air flue inclining to the inside, this can enable the material in the wind falling into the grinding room along with the slope.
TGM Series Super Pressure Trapezium Grinder Mill mainly consists of Main frame, Powder Collector, Decelerator, Air Blower, Bag Dust Catcher, Piping System, Cyclone Collector, Motors. And other provided equipments are Jaw crusher, Hopper Elevator, Feeder, Electric Control Cabinet, and etc.
TGM100 Super Pressure Trapezium Roller Mill
Technical Parameter
Number of Roller (PCS): 4
Diameter *height of the Roller (mm): 320*200
Diameter *Height of the Ring (mm ): 980*200
Rotational Speed of the Mainframe (Rev) 130
Max Feeding Size (mm) 20—25
Final Product Size (mm) 1.6—0.045,the finest product can reach 0.038
Capacity (T/H) 3—4.4
Overall Dimension (M) 9910×5365×8310
Weight (Excluding Electric Control Cabinet)(Mt) 16

TGM130 Super Pressure Trapezium Roller Mill
Technical Parameter
Number of Roller (PCS): 5
Diameter *height of the Roller (mm): 410×240
Diameter *Height of the Ring (mm ): 1280×240
Rotational Speed of the Mainframe (Rev) 103
Max Feeding Size (mm) 30
Final Product Size (mm) 1.6—0.045,the finest product can reach 0.038
Capacity (T/H) 6-8.8
Overall Dimension (M) : 7910×7000×9645
Weight (Excluding Electric Control Cabinet)(Mt) 26.1

TGM160 Super Pressure Trapezium Roller Mill
Technical Parameter
Number of Roller (PCS): 6
Diameter *height of the Roller (mm): 440×270
Diameter *Height of the Ring (mm ): 1600×270
Rotational Speed of the Mainframe (Rev) 82
Max Feeding Size (mm) 35
Final Product Size (mm) 1.6—0.045,the finest product can reach 0.038
Capacity (T/H) 9-13
Overall Dimension (M) : 12550×5700×8335
Weight (Excluding Electric Control Cabinet)(Mt)35
For more information,please refer to our website:http://www.grinderpro.com/super.html
